Tall storage racks can block light from reaching lower shelves. Narrow aisles can create shadows on product labels. Poorly positioned high bays can produce bright spots on the floor while leaving aisle ends, packing stations, loading areas, and vertical rack surfaces difficult to see.

This is why warehouse lighting should not be planned around fixture wattage alone.

An effective warehouse LED lighting plan considers:

• Light reaching the actual work surface
• Horizontal and vertical illumination
• Fixture mounting height
• Rack height and aisle width
• Uniformity between fixtures
• Direct and reflected glare
• Beam distribution
• Color quality
• Emergency and egress lighting
• Lighting controls
• Energy-code requirements
• Maintenance access
• Operating hours

The correct lighting system may also require more than one fixture type.

An open warehouse floor may benefit from Patel LED UFO high bays, while long rack aisles may be better served by linear high bays. Loading docks, exterior walls, truck yards, utility rooms, offices, and emergency routes each have different lighting requirements.

This guide explains how warehouse lighting standards work, how foot-candles differ from lumens, how mounting height affects fixture selection, why generic spacing rules can fail, and how to build a warehouse lighting system using appropriate Patel LED products.

What Are the Main Warehouse LED Lighting Standards?

Warehouse LED lighting standards can include workplace-safety requirements, recommended task-lighting levels, local building and energy codes, emergency-egress rules, and product-certification requirements. A compliant and effective design should consider foot-candles, uniformity, glare, vertical illumination, color quality, fixture distribution, controls, emergency coverage, and verified photometric performance.

The most important warehouse lighting considerations

• Foot-candles: Light reaching the floor, shelf, label, desk, or work surface
• Lumens: Total light produced by the fixture
• Uniformity: How evenly light is distributed
• Glare: Excessive brightness that can reduce visibility
• Vertical illumination: Light reaching rack faces and labels
• CCT and CRI: Light appearance and color identification
• Controls: Occupancy sensing, dimming, zoning, and scheduling
• Emergency lighting: Illumination and identification during power loss
• Photometric planning: Predicting how fixtures perform within the actual layout

Warehouse owners should first define the task, mounting environment, and operating conditions. They can then identify the appropriate Patel LED fixture family instead of choosing a warehouse light based only on wattage.

What Does Warehouse Lighting Standard Mean?

There is no single warehouse lighting standard that answers every design question for every facility in the United States.

The phrase may refer to several different categories of requirements.

Regulatory minimums are not complete lighting designs

OSHA’s construction illumination standard, 29 CFR 1926.56, requires listed construction areas, corridors, offices, shops, and storage areas to meet minimum illumination levels while work is in progress. Its table includes 5 foot-candles for general construction-area lighting and 10 foot-candles for general construction shops, mechanical rooms, and indoor offices. This is a construction standard, not a complete warehouse design guide. An OSHA standard covering hazardous-waste operations lists 5 foot-candles for indoor warehouses, corridors, hallways, and exitways within that standard’s scope. It should not be presented as a universal design recommendation for every warehouse. OSHA also contains requirements for specific situations. For example, working spaces around electrical service equipment, switchboards, panelboards, and motor-control centers must have illumination. The conclusion for buyers is simple:

A figure found in one OSHA table may be a minimum for a specific regulated situation. It is not automatically the ideal light level for order picking, inspection, packing, forklift operation, product labeling, or detailed warehouse work.

Building and energy codes vary by jurisdiction

State and local codes may regulate:

• Lighting power density
• Occupancy controls
• Automatic shutoff
• Daylight-responsive controls
• Exterior-lighting power
• Emergency illumination
• Egress lighting
• Functional testing
• Control zoning

Warehouse-related control requirements have appeared in multiple editions of commercial energy codes, but the exact requirements depend on which code and amendments have been adopted locally. A lighting product cannot make a project automatically code-compliant. Compliance depends on the complete design, installation, controls, emergency system, documentation, and local review.

Patel LED planning step: Confirm the required light level, mounting height, fixture distribution, voltage, controls, and applicable local code before selecting warehouse products.

Foot-Candles Explained

A foot-candle measures the amount of light reaching a surface.

One foot-candle equals one lumen distributed over one square foot.

The distinction between lumens and foot-candles matters because a fixture can produce a large number of lumens without delivering those lumens effectively to the warehouse floor or working surface.

Lumens versus foot-candles

Imagine two high-bay fixtures that each produce 24,000 lumens.

One has a distribution suited to an open floor. The other directs more light along a narrow aisle.

Although the total lumen output is similar, the foot-candle readings on the floor, rack faces, and work surfaces can be very different.

That performance is influenced by:

• Fixture optics
• Beam angle
• Mounting height
• Fixture spacing
• Rack obstruction
• Ceiling and wall reflectance
• Floor color
• Dirt accumulation
• Light-loss assumptions
• Work-plane height

Why floor readings do not tell the whole story

Horizontal foot-candle readings may be taken on the warehouse floor or a work surface. However, employees often need to read information positioned vertically.

Examples include:

• Rack labels
• Product identification
• Safety signs
• Barcodes
• Storage-location numbers
• Pallet tags
• Equipment controls
• Electrical panels

A warehouse can have an acceptable average horizontal measurement but poor visibility on vertical rack surfaces.

How many foot-candles does a warehouse need?

There is no single number suitable for every warehouse area.

Inactive storage, active aisles, loading docks, picking stations, detailed inspection tables, offices, and electrical rooms involve different visual tasks.

The following values should be treated as general early-stage planning ranges, not universal legal requirements:

Final targets should be established from the actual task, professional lighting guidance, company standards, employee needs, and locally applicable requirements.

Minimum illumination does not necessarily provide strong uniformity, glare control, adequate vertical rack lighting, or sufficient visibility for detailed work.

Lumens, Watts and Efficacy

Warehouse buyers often begin by asking:

“What wattage high bay do I need?”

A better question is:

“What light level and distribution must the fixture produce at the required mounting height?”

Why wattage is not brightness

Wattage measures power consumption.

A more efficient 150W LED fixture may produce more useful light than an older, less efficient fixture using substantially more power.

Even among LEDs, two products with the same wattage may have different:

• Lumen outputs
• Beam distributions
• Driver efficiencies
• Thermal performance
• Dimming capabilities
• Environmental ratings
• Optical designs

Why the highest lumen output is not always best

Excessive output can create:

• Glare
• Unnecessary energy use
• Bright hotspots
• Uncomfortable contrast
• Poor security-camera exposure
• Overlighting near reflective surfaces

The goal is not to install the brightest fixture available. The goal is to deliver the required light evenly and efficiently.

Do not replace an old high bay by matching wattage alone. Compare mounting height, lumen output, distribution, controls, and warehouse layout with an appropriate Patel LED high-bay option.

Warehouse Lighting by Area

A warehouse is not one uniform room. It is a collection of zones with different visual tasks and environmental conditions.

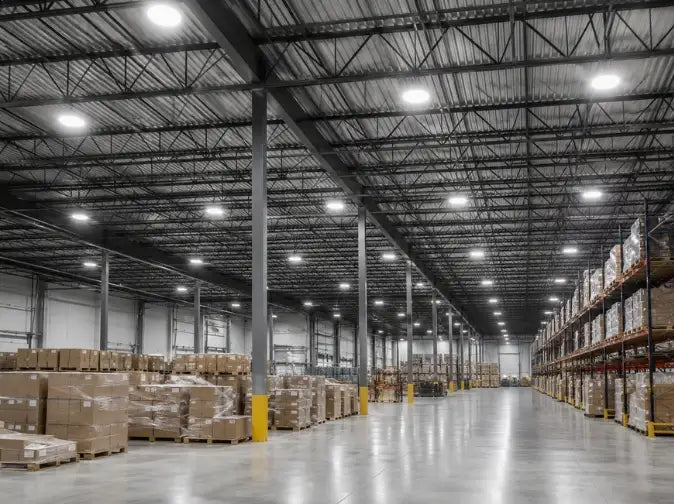

Open warehouse floors

Open areas generally need broad, consistent overhead coverage.

Suitable Patel LED categories may include:

• UFO LED high bays
• Linear LED high bays

UFO fixtures can work well in large unobstructed zones because their compact circular form supports grid-style layouts. Patel LED currently lists adjustable UFO high bays for warehouse, factory, gymnasium, and commercial use. One listed model provides selectable 100W, 120W, and 150W output with up to 22,500 lumens.

• Mounting height
• Required output
• Beam distribution
• Voltage
• Dimming
• Suspension method
• Spacing
• Ambient temperature

High rack aisles

Tall racks can block broad overhead light and produce dark vertical surfaces.

Long aisles often require:

• Directional distribution
• Consistent row alignment
• Strong vertical illumination
• Controlled spill above rack tops
• Careful end-of-aisle placement

Patel LED linear high bays are positioned for warehouse aisles, industrial spaces, distribution centers, and other long rectangular layouts. The collection currently includes a 2-foot model listed at 165W and 23,925 lumens with selectable 4000K, 5000K, and 5700K output, as well as a 4-foot model listed at 320W and 29,000 lumens. fixture is not automatically an aisle optic. Buyers should verify the actual photometric distribution.

Picking and packing stations

These areas require more than general ambient light.

Employees may need to:

• Read labels
• Scan barcodes
• Check quantities
• Match products
• Inspect packaging
• Identify damage
• Read small print


Important factors include:

• Adequate task-level foot-candles
• Strong uniformity
• Reduced glare
• Appropriate CRI
• Vertical illumination
• Task-light supplementation where needed

A general high-bay system may be combined with a lower-mounted linear fixture or task-lighting layer.

Shipping and receiving

Shipping areas often combine:

• Forklift traffic
• Pedestrian activity
• Open dock doors
• Daylight variation
• Trailers
• Product inspection
• Paperwork
• Indoor and outdoor transitions

The lighting design should minimize abrupt contrast between brightly lit outdoor areas and darker interior zones.

Loading docks

A loading dock may require several fixture types:

• High bays inside the dock area
• Wall packs at exterior doors
• Canopy lights under covered structures
• Flood lights for selected security zones
• Area lights for wider vehicle areas

Patel LED wall packs are designed for exterior walls, entrances, walkways, loading docks, service doors, and building perimeters. canopy lights are positioned for covered loading bays, garages, drive-throughs, and similar overhead outdoor areas, damp or demanding areas

A fixture used in a dry storage room may not be appropriate for a damp, dusty, washdown, refrigerated, or processing environment.

Verify:

• IP rating
• Wet- or damp-location rating
• Operating-temperature range
• Corrosion resistance
• Lens material
• Seal construction
• Cleaning practices

Patel LED’s vapor-tight collection is designed for moisture- and dust-prone commercial environments, including warehouses, parking structures, and industrial locations. Suitability must be confirmed from the exact model’s specifications. ouse offices

Offices usually have lower ceilings and different glare and comfort expectations.

Appropriate Patel LED categories may include:

• LED panel lights
• Troffer lights
• Tube fixtures
• Strip fixtures

Patel LED troffers are designed for grid ceilings in offices and other commercial interiors, while the tube-fixture collection includes products for warehouses, workshops, garages, and utility spaces. ior walls

Use wall packs to illuminate:

• Entrances
• Walkways
• Service doors
• Loading doors
• Building perimeters
• Security zones

Parking and truck yards

Large outdoor areas may require:

• LED area lights
• Parking-lot fixtures
• Selected flood lights

Fixture distribution, pole height, property boundaries, glare, light trespass, and local exterior-lighting limits should be reviewed.

Emergency routes and exits

Exit signs and emergency lighting are life-safety components, not optional decorative fixtures.

Plan the whole property: A warehouse retrofit may require Patel LED high bays inside, wall packs around the building, canopy lights above docks, area lights in yards, and emergency products along exit routes.

UFO High Bay vs Linear High Bay

Choosing between UFO and linear high bays should be based on the warehouse layout, not simply product appearance.

UFO high bays

UFO high bays are circular, compact fixtures commonly used in open high-ceiling areas.

They may suit:

• Open warehouse floors
• Manufacturing areas
• Gymnasiums
• Workshops
• Large commercial rooms
• Spaces with relatively unobstructed layouts
• Potential advantages include:

• Compact fixture body
• High lumen output
• Broad area distribution
• Convenient suspension
• Grid-based installation
• Easier storage and handling

Patel LED’s high-bay collection currently includes multiple selectable-output UFO products for warehouses and industrial facilities. r high bays

Linear high bays are rectangular fixtures that align naturally with long spaces.

They may suit:

• Rack aisles
• Distribution centers
• Assembly lines
• Retail warehouses
• Long production areas
• Structured rectangular layouts
• Potential advantages include:

• Elongated light distribution
• Row-oriented installation
• Better alignment with aisles
• More light directed along the working zone
• Reduced wasted light when optics match the layout

Neither fixture is universally better.

A UFO high bay with suitable optics may perform well in some aisle applications. A linear high bay can work effectively in open areas when its distribution and layout support the required uniformity.

Open warehouse or structured aisles? Compare Patel LED UFO and linear high bays before selecting wattage, output, or quantity.

Ceiling Height and Fixture Selection

Also consider:

• Mounting height above the actual work plane
• Rack height
• Aisle width
• Beam distribution
• Required vertical light
• Fixture spacing
• Reflectance
• Skylights
• Obstructions
• Controls
• Ambient conditions

A 25-foot ceiling with racks reaching 22 feet creates a different lighting problem from a 25-foot open manufacturing floor.

How to Estimate Warehouse Fixture Quantity

A simplified starting formula is:

Approximate fixture quantity = Required total lumens ÷ Estimated usable lumens per fixture

A basic lumen estimate may begin with:

Target foot-candles × Area in square feet = Initial lumens reaching the work plane

However, this does not equal the raw lumens that fixtures must produce.

Adjustments are needed for:

• Coefficient of utilization
• Light-loss factor
• Mounting height
• Optics
• Rack obstruction
• Surface reflectance
• Fixture orientation
• Uniformity
• Vertical illumination

Simplified 50,000-square-foot example

Assume a facility contains:

• 30,000 square feet of open storage
• 15,000 square feet of rack aisles
• 5,000 square feet of packing, offices, and dock support
• 24-foot mounting height
• 4,000 annual operating hours

Instead of using one average target for the entire property, divide the project into zones.

Open storage

Assumed early planning target: 20 foot-candles

20 × 30,000 = 600,000 initial work-plane lumens

Rack aisles

Assumed early planning target: 25 foot-candles, with added attention to vertical surfaces

25 × 15,000 = 375,000 initial work-plane lumens

Packing and support areas

Assumed early planning target: 40 foot-candles

40 × 5,000 = 200,000 initial work-plane lumens

Initial total:

1,175,000 lumens reaching the relevant surfaces

This still does not provide a reliable fixture count because raw fixture lumens must be adjusted for utilization, losses, optics, and obstructions.

A project could therefore use:

• Patel LED UFO high bays for the open floor
• Patel LED linear high bays for rack rows
• Lower-mounted linear fixtures for packing
• Panels or troffers for offices
• Wall packs and canopy lights around docks
• Emergency fixtures along egress routes

A photometric plan is more reliable than dividing square footage by a generic “coverage per fixture” claim.

Warehouse High-Bay Spacing

High-bay spacing determines how fixture beams overlap.

Fixtures placed too far apart may create:

• Dark zones
• Uneven floor readings
• Poor rack-face visibility
• Dark aisle ends
• High contrast
• Fixtures placed too closely may cause:

• Overlighting
• Glare
• Unnecessary wattage
• Higher project cost
• Excessive brightness under fixtures

Spacing-to-mounting-height concept

Lighting designers may compare the distance between fixtures with their mounting height above the work plane.

A broad-distribution fixture may support wider spacing than a narrow-distribution fixture, but a universal ratio should not be applied without photometric data.

Why “one light every 20 feet” can fail

Generic spacing advice ignores:

• Fixture optics
• Actual lumen output
• Rack placement
• Ceiling obstructions
• Work-plane height
• Surface reflectance
• Daylight
• Required uniformity
• Vertical illumination
• Fixture depreciation

Two warehouses of the same square footage may need different quantities because their layouts, tasks, and mounting conditions differ.

Before ordering multiple Patel LED high bays, verify spacing with the fixture’s photometric data and the actual warehouse layout.

Color Temperature and CRI

4000K versus 5000K

CCT describes the visual appearance of white light.

4000K

Typically appears neutral white.

It may provide a balanced environment for:

• General storage
• Offices
• Mixed-use workspaces
• Employee comfort
• Long operating shifts
• 5000K

Typically appears cooler and more daylight-like.

It may be considered for:

• Picking
• Packaging
• Loading
• Manufacturing
• High-visibility tasks
• Product-handling zones

A cooler CCT does not automatically make a warehouse safer.

Visibility depends on the complete lighting system, including foot-candles, glare, uniformity, contrast, CRI, vertical illumination, and distribution.

Why CRI matters

CRI helps describe how naturally colors appear under a light source.

Color identification may matter when employees work with:

• Electrical wiring
• Hazard labels
• Product categories
• Packaging colors
• Quality-control samples
• Safety markings
• Equipment indicators

Buyers should also consider how the light works with security cameras and scanning equipment.

CCT and CRI should remain consistent across the installation. Ordering a coordinated quantity of one Patel LED model can reduce the risk of mixing visibly different fixture types, but the selected specification should still be verified before purchase.

Glare, Uniformity and Shadows

A warehouse can achieve an acceptable average foot-candle measurement while still providing poor visual conditions.

Consider two aisles:

• One measures 40 foot-candles directly beneath fixtures.
• Another falls to 8 foot-candles between fixtures.

The average may appear reasonable, but the variation can create uncomfortable contrast.

Signs the lighting layout needs improvement

• Employees use flashlights to read labels.
• Rack faces are difficult to see.
• Aisle ends appear darker.
• Forklift operators experience glare.
• Some areas look overlit.
• Security footage lacks usable detail.
• Fixtures have visibly different colors.
• Employees add unapproved task lamps.
• Packing errors increase in darker zones.
• Bright fixtures are visible directly in operators’ sightlines.

The solution is not always to add more fixtures.

Better results may come from:

• Changing the fixture distribution
• Repositioning rows
• Using linear high bays in aisles
• Reducing glare
• Adding task lighting
• Adjusting output
• Improving controls
• Replacing mixed fixture types
• Cleaning existing fixtures
• Correcting failed drivers or lamps

Warehouse Controls and Energy Requirements

Warehouses often contain zones that are occupied irregularly.

Examples include:

• Reserve-storage aisles
• Seasonal areas
• Mezzanines
• Maintenance rooms
• Overnight staging zones
• Daylit loading areas
• Low-traffic corners

This makes lighting controls commercially valuable.

Occupancy and motion controls

Sensors can reduce output or switch fixtures off when areas are unoccupied.

Dimming

Dimming can support:

• Task tuning
• High-end trim
• Daylight response
• Scheduled reduction
• Reduced output during low-activity periods


The U.S. Department of Energy notes that commercial and industrial LED luminaires can work with occupancy sensors, task tuning, and dimming to provide additional energy-saving opportunities.

Do not control the entire warehouse as one large zone when operations vary significantly.

Potential zones include:

• Open storage
• Rack aisles
• Picking
• Packing
• Shipping
• Receiving
• Offices
• Docks
• Exterior areas
• Emergency circuits

Verify compatibility

Only assume a Patel LED fixture supports 0–10V dimming, sensors, or another control method when the live product specifications confirm it.

Warehouse Lighting ROI Example

The following model demonstrates how a buyer can estimate energy savings. It is not a guaranteed Patel LED performance claim.

Example assumptions

• Existing fixtures: 100 metal-halide high bays
• Existing system input: 458W each
• Proposed LED input: 150W each
• Annual operating hours: 4,000
• Electricity rate: $0.14 per kWh
• Controls savings: Not included
• Maintenance savings: Not included

Existing system

100 × 458W = 45,800W

45.8 kW × 4,000 hours = 183,200 kWh annually

183,200 × $0.14 = $25,648 annual electricity cost

Proposed LED system

100 × 150W = 15,000W

15 kW × 4,000 hours = 60,000 kWh annually

60,000 × $0.14 = $8,400 annual electricity cost

Estimated savings

Annual energy reduction:

183,200 − 60,000 = 123,200 kWh

Estimated annual electricity savings:

$25,648 − $8,400 = $17,248

Estimated five-year electricity savings:

$17,248 × 5 = $86,240

Actual savings depend on:

• Verified existing input wattage
• Selected LED wattage
• Fixture quantity
• Utility rate
• Operating schedule
• Controls
• Demand charges
• Installation
• Light levels
• Maintenance
• Local incentives

DOE’s federal purchasing guidance emphasizes lifecycle cost rather than purchase price alone and notes that controls can generate further savings. enance factors

Include:

• Replacement lamps
• Ballasts
• Lift rental
• Technician labor
• Production interruptions
• Repeated contractor visits
• Emergency replacements
• Fixture cleaning
• Inventory

Operating warehouse lights for thousands of hours each year? Compare the input wattage and lumen output of the existing system with verified Patel LED high-bay options before calculating payback.

Retrofit or Complete Fixture Replacement?

Lamp replacement

This may solve an immediate failure but retain aging housings, ballasts, optics, and inconsistent equipment.

Retrofit kit

A retrofit can preserve part of the existing housing. Suitability depends on the fixture’s condition, listing, wiring, thermal environment, and approved kit.

New LED fixture

A complete fixture replacement can provide:

• New driver
• New optics
• Consistent appearance
• Updated control capability
• Standardized warranty
• Cleaner project documentation

Phased installation

Phasing may help manage budget but can create:

• Repeated contractor mobilization
• Mixed products
• Changing prices
• Different production batches
• Delayed energy savings

The correct approach depends on equipment condition, project goals, code requirements, budget, and operational disruption.

Patel LED Warehouse Product Selection Matrix

Specifications change, so every model must be verified on its live Patel LED page before ordering.

Patel LED’s commercial-lighting catalog covers high bays, panels, wall packs, area lights, canopy lights, and other indoor and outdoor categories.

20 Common Warehouse Lighting Purchasing Mistakes

• Choosing fixtures by wattage alone
• Using one fixture type throughout every zone
• Ignoring rack layout
• Ignoring mounting height
• Ignoring aisle width
• Overlighting open areas
• Treating an OSHA minimum as the ideal design target
• Ignoring vertical illumination
• Failing to control glare
• Mixing multiple CCTs
• Forgetting CRI
• Ignoring controls
• Failing to verify voltage
• Ignoring environmental ratings
• Ordering without a verified fixture count
• Skipping photometric planning
• Forgetting emergency lighting
• Ignoring local energy codes
• Mixing several unrelated products without documentation
• Comparing purchase price instead of total ownership cost

Avoid expensive reordering. Build a zone-by-zone warehouse lighting schedule before selecting Patel LED fixtures.

Warehouse Lighting Buyer Checklist

Facility information

• Warehouse square footage
• Ceiling height
• Fixture mounting height
• Rack height
• Aisle width
• Floor plan
• Operating hours
• Shift schedule
• Work activities
• Ambient temperature
• Moisture or dust exposure

Existing lighting

• Fixture type
• Fixture quantity
• Input wattage
• Voltage
• Mounting method
• Existing controls
• Emergency fixtures
• Lamp and ballast history
• Current foot-candle readings

Performance requirements

• Required task light
• Horizontal foot-candles
• Vertical illumination
• Uniformity
• Glare control
• CCT
• CRI
• Dimming
• Occupancy sensing
• Emergency coverage

Purchasing details

• Patel LED product category
• Exact SKU
• Quantity
• Reserve quantity
• Warranty
• Certification
• DLC qualification where needed
• Delivery schedule
• Loading dock availability
• Liftgate requirement
• Storage
• Installation date
• Utility-incentive deadline

The DLC Qualified Products Lists provide verified listings for high-performing commercial LED lighting and control products. Buyers seeking incentives or specification compliance should confirm that the exact model - not merely the general product family is listed where required.

“Our warehouse already looks bright.”

Brightness near the entrance or directly beneath fixtures does not prove that rack faces, workstations, aisle ends, and loading areas receive adequate illumination. Measure relevant surfaces and review uniformity.

“We only need to replace failed fixtures.”

Spot replacement can work temporarily, but it may create inconsistent color, output, controls, and warranties. Compare reactive replacement with a planned zone retrofit.

“The OSHA minimum should be enough.”

OSHA requirements depend on the standard and situation involved. A legal minimum is not automatically an ideal level for detailed picking, inspection, packaging, or high-traffic work.

“The highest wattage must be better.”

Higher wattage increases electricity use and may produce glare or overlighting. Select output based on mounting height, distribution, spacing, and required foot-candles.

“All high bays are similar.”

Products can differ in lumens, efficacy, optics, voltage, CCT, CRI, controls, environmental ratings, mounting, warranty, and certification.

“We can estimate spacing ourselves.”

A rough estimate may help budgeting, but a photometric plan provides better information about average light, minimum light, uniformity, and dark zones.

“Controls are not worth the cost.”

Controls can be valuable in low-occupancy aisles, seasonal areas, daylit docks, and facilities with long operating hours. Evaluate their payback separately.

“A full retrofit is too expensive.”

Consider phasing by zone, but account for repeated labor, delayed savings, and product consistency.

“We will buy the least expensive fixture.”

The lowest purchase price may not provide the best distribution, lifespan, controls, warranty, certification, or total cost.

“We can order the remaining fixtures later.”

Future availability, pricing, specifications, and production batches may change. Consider the value of coordinated purchasing and reasonable replacement inventory.

Why Warehouse Buyers Consider Patel LED

Patel LED gives commercial buyers access to several parts of a warehouse lighting system through one product catalog.

Relevant categories include:

• UFO high bays
• Linear high bays
• Vapor-tight fixtures
• Tube and strip fixtures
• Commercial panels and troffers
• Wall packs
• Canopy lights
• Flood lights
• Area lights
• Emergency panels
• Exit signs

This allows a project team to plan interior, exterior, office, utility, loading, parking, and emergency applications without treating each area as an unrelated purchase.

The advantage is not that one Patel LED fixture fits every warehouse area.

The advantage is that buyers can review multiple relevant fixture categories while building one coordinated facility-lighting plan.

FAQs

Build a Complete Warehouse Lighting System with Patel LED

Warehouse lighting is rarely solved by installing one fixture type everywhere.

A complete property may require:

• UFO high bays for open warehouse floors
• Linear high bays for structured rack aisles
• Vapor-tight fixtures for moisture- or dust-prone areas
• Strip or tube fixtures for utility spaces
• Panel or troffer lights for warehouse offices
• Wall packs for building exteriors
• Canopy lights for covered loading areas
• Area or flood lights for truck yards
• Emergency lights and exit signs for life-safety planning

Warehouse lighting should be selected by area, task, mounting height, distribution, controls, and operating conditions - not wattage alone.

Review Patel LED’s commercial lighting categories, divide the warehouse into functional zones, and build the fixture plan for the entire property before ordering.
Explore Patel LED Warehouse Lighting
