Remote RFBT12 - Wireless 2.4GHz RF Touch Remote with DIY Memory Keys
Experience versatile and precise control over your LED lighting with the RFBT12 wireless RF touch remote fromPatel LED. Designed for both single color and CCT (correlated color temperature) LED strips, this remote offers intuitive operation and advanced customization with a reliable 30-meter wireless range.
The 2-in-1 remote lets you seamlessly adjust both brightness and color temperature while providing two DIY memory keys for saving and recalling your favorite lighting scenes instantly. Whether you're creating cozy warm whites or bright daylight, the RFBT12 makes controlling your LED strips simple and efficient.

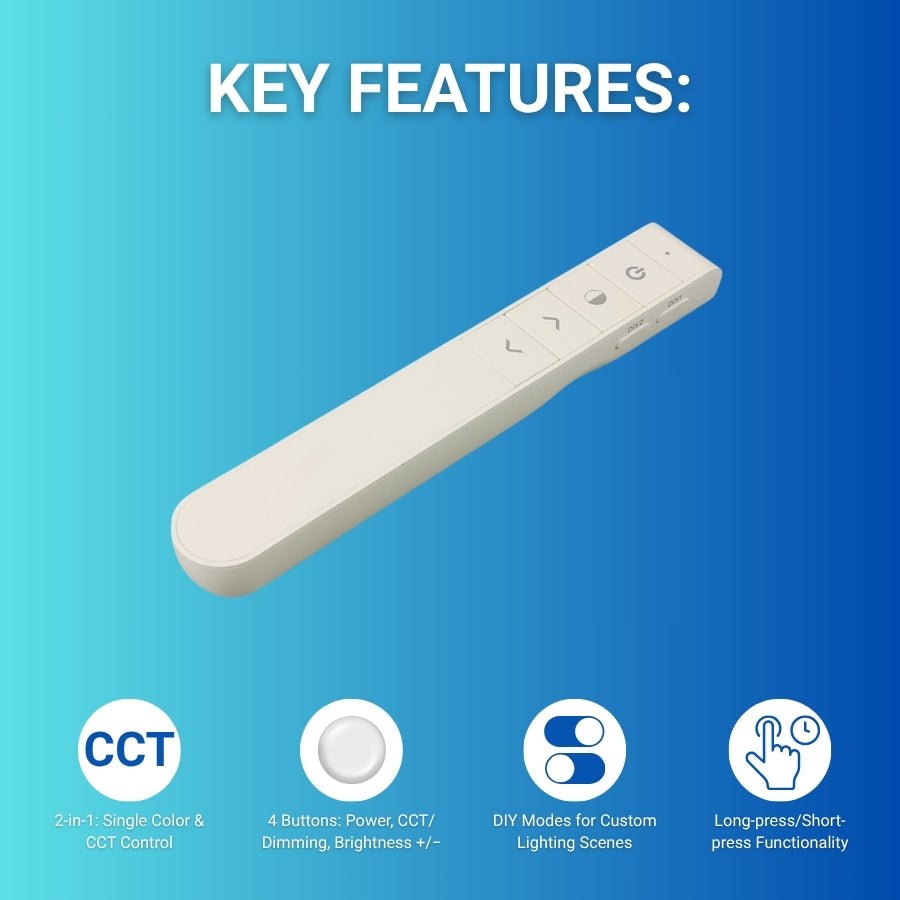

Key Features and Benefits
| Feature | Description |
|---|---|
| Wireless Frequency | 2.4 GHz RF for reliable control up to 30 meters without line-of-sight |
| Compatibility | Supports single color and CCT LED strip lights |
| Power Source | Powered by 2 × AAA batteries (3V total) |
| Control Functions | ON/OFF, Brightness +/-, Color Temperature adjustment, and 2 DIY memory keys |
| DIY Memory Keys | Save and recall customized light states for quick scene changes |
| Brightness Control | Fast adjustment with short press, fine tuning with long press |
| Color Temperature Control | Hot keys for preset white tones, stepless tuning via long press |
| Remote Size & Weight | Compact design (140×20×18 mm), lightweight (46g) |
| Working Temperature | 0°C to 40°C suitable for indoor environments |

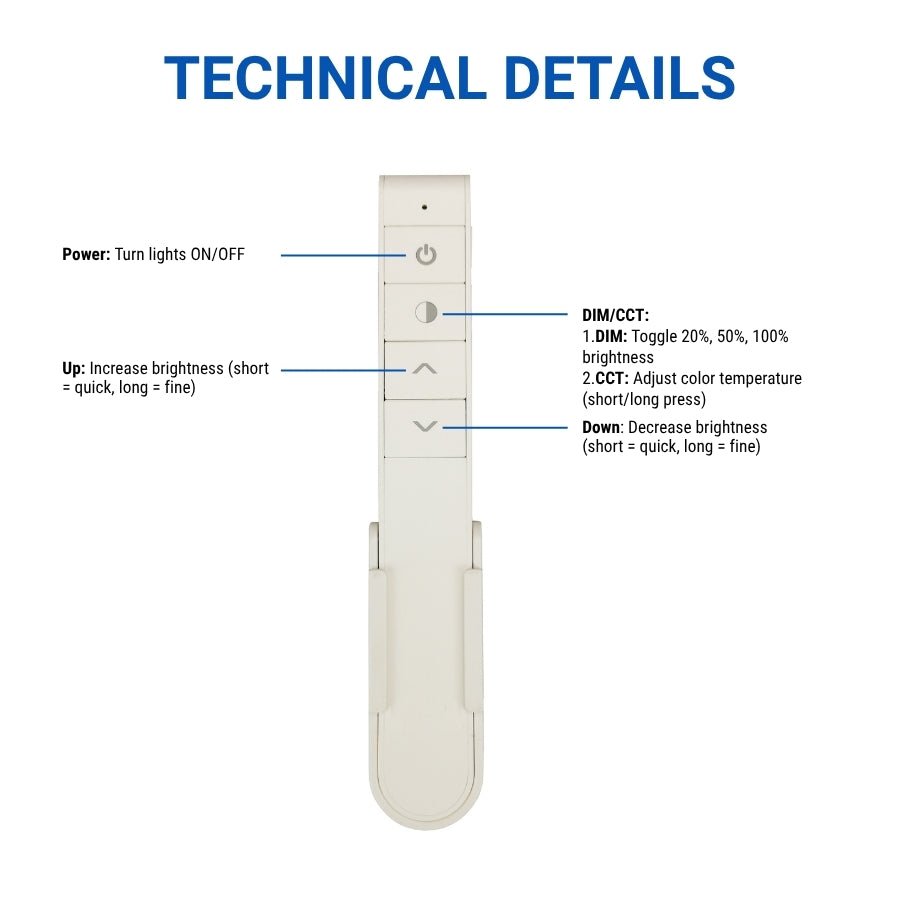

Operation Overview
-
ON/OFF: Power your LED strips on or off at any time.
-
DIM/CCT:
-
For single color LEDs: Toggle preset brightness levels (20%, 50%, 100%).
-
For CCT LEDs: Cycle through 100% cool white, 50/50 cool/warm white, and 100% warm white with short press; stepless increase or decrease with long press.
-
-
Brightness + / -: Adjust brightness quickly with short presses, or fine tune with long presses.
-

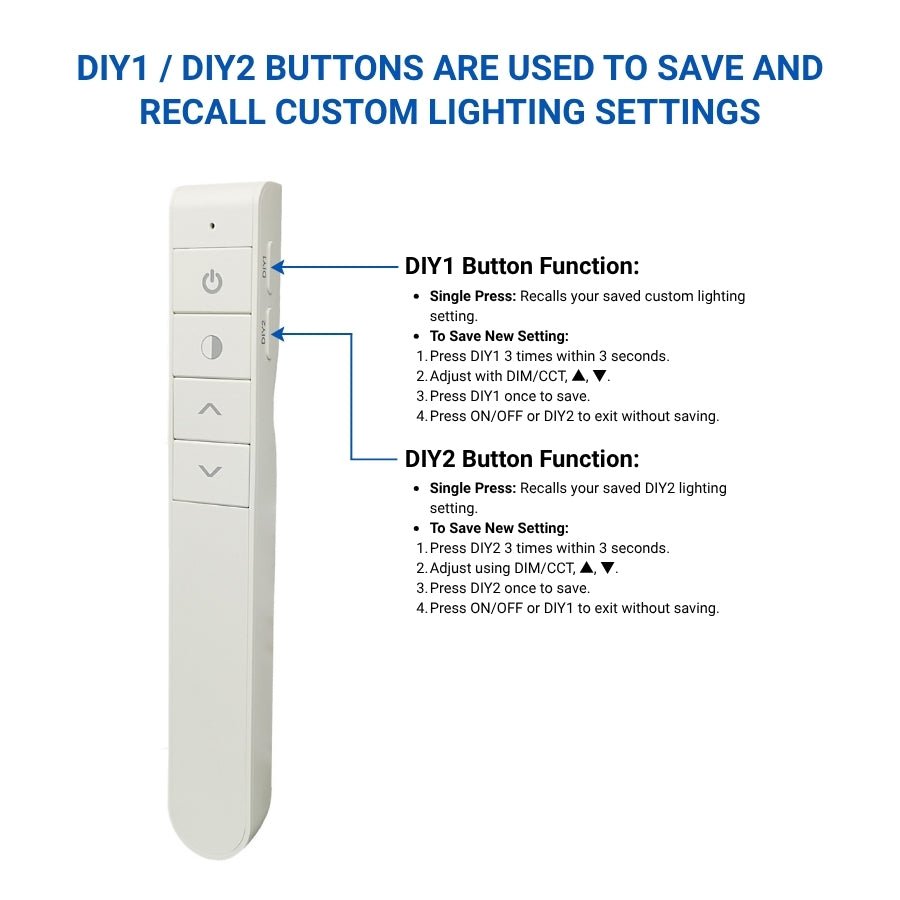

DIY Memory Keys (DIY1 & DIY2):
-
Enter customization mode by pressing a DIY key three times within 3 seconds.
-
Use DIM/CCT and Brightness buttons to set desired lighting.
-
Save settings by pressing the same DIY key once, or exit without saving by pressing ON/OFF or the other DIY key.
-
Settings must be saved within 30 seconds.
-
Wireless Code Programming and Synchronization
-
Unlimited system size: Multiple controllers and remotes can be paired in one system.
-
Code Matching:
-
Clear old codes before pairing new remotes to avoid interference.
-
Hold DIY1 for 5 seconds to enter pairing mode; lights flash 3 times upon success.
-
-
Code Clearing:
-
Power on the receiver, then hold DIY2 for 5 seconds to clear codes and return to factory state.
-
-
Code Learning Between Remotes:
-
Main remote: Hold DIY1 for 5 seconds to transmit code.
-
New remote: Hold ON/OFF for 5 seconds to learn code; indicator confirms success.
-
-
Remote Learning from Controllers:
-
Turn off controllers, hold ON/OFF on remote for 5 seconds, power on controllers; remote confirms pairing.
-
-
Factory Reset of Remote:
-
Hold ON/OFF for 20 seconds until LED cycles (100%-off-100%), then press DIY2 to confirm.
-
Why Choose the Patel LED RFBT12 Remote?
Patel LED provides a reliable, easy-to-use solution for LED strip lighting control, combining wireless freedom, advanced memory features, and precise brightness and color temperature management in one compact remote. Whether upgrading your home lighting or managing professional installations, the RFBT12 remote simplifies lighting customization while maintaining seamless integration and control.
