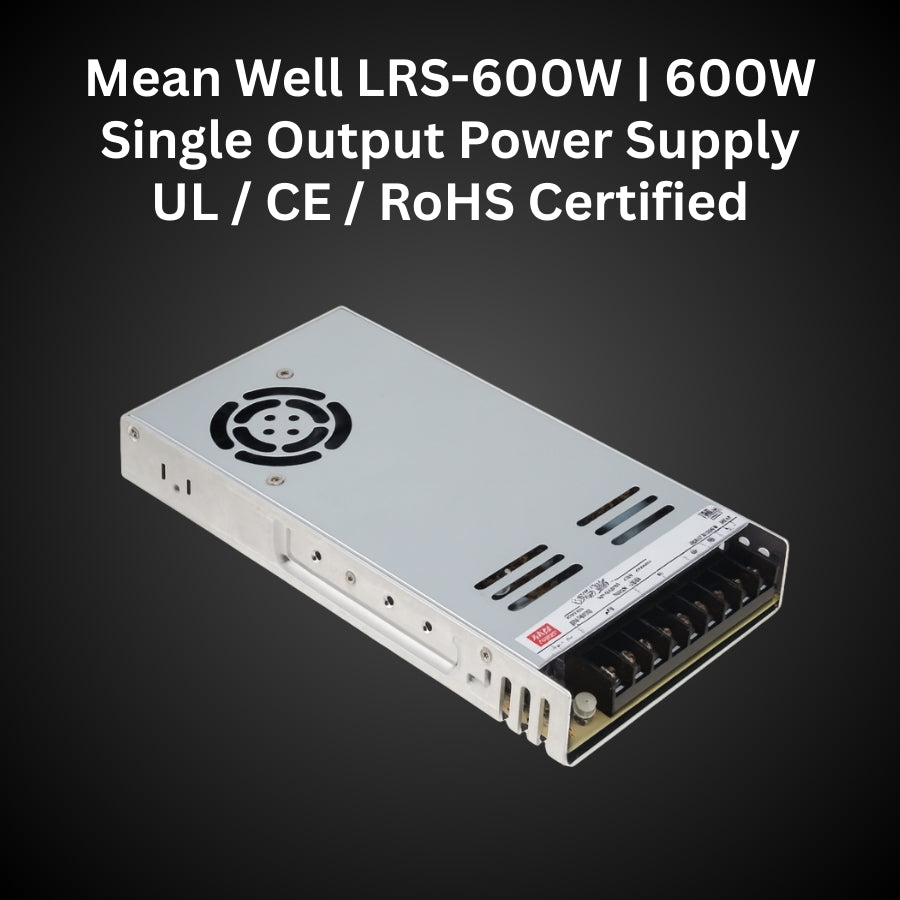

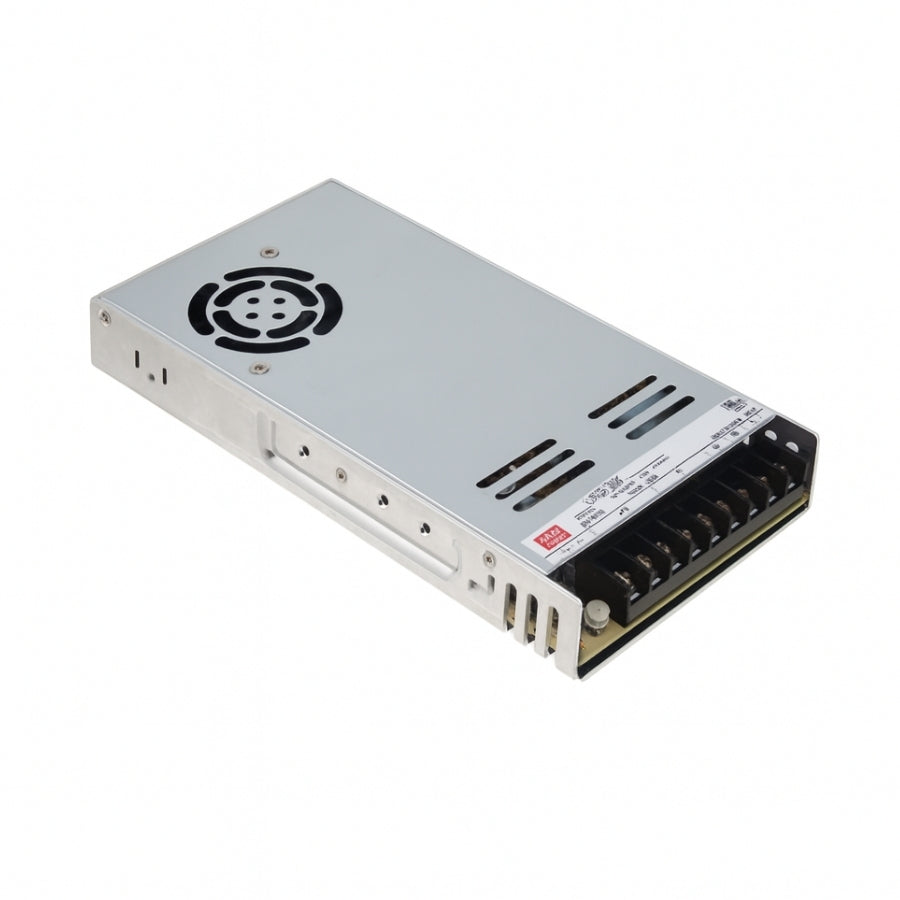

LRS-600 600W Single Output Switching Power Supply - 90-264VAC Input, UL/CE/RoHS Certified, 86-92% Efficiency, Multi-Voltage Output, Compact 41mm Low-Profile, Industrial Grade, 3-Year Warranty
In stock
POWER SUPPLY
Patel LED
PL-1661
Share:
Free Shipping
Ships within 1 business day
Volume Discounts
The Patel LED LRS-600 600W/24V Single Output Switching Power Supply delivers high-efficiency, reliable performance for industrial automation, control systems, and demanding electronic applications. Offering up to 92% efficiency and multiple output voltage options (5V, 12V, 15V, 24V, 27V, 36V, 48V), this compact power supply ensures stable operation even under heavy load. Equipped with comprehensive protection features—including short circuit, overload, over-voltage, and over-temperature safeguards—the LRS-600 enhances system safety and reduces downtime. Its slim 41mm low-profile design with forced air cooling and intelligent fan ON/OFF control optimizes heat dissipation and operational reliability. With a wide selectable input voltage range (90-264VAC), vibration resistance, and an MTBF exceeding 1.5 million hours, this unit is built for long-term dependability. Accessories like the TBC-09 terminal block cover and MHS-012 mounting kits simplify installation. Backed by UL/CE/RoHS certifications and a 3-year warranty, the Patel LED LRS-600 provides unmatched quality for professional applications.
Technical Details
| Specification | Description |
|---|---|
| Brand | Patel LED |
| Model Series | LRS-600 |
| Rated Power | 600W |

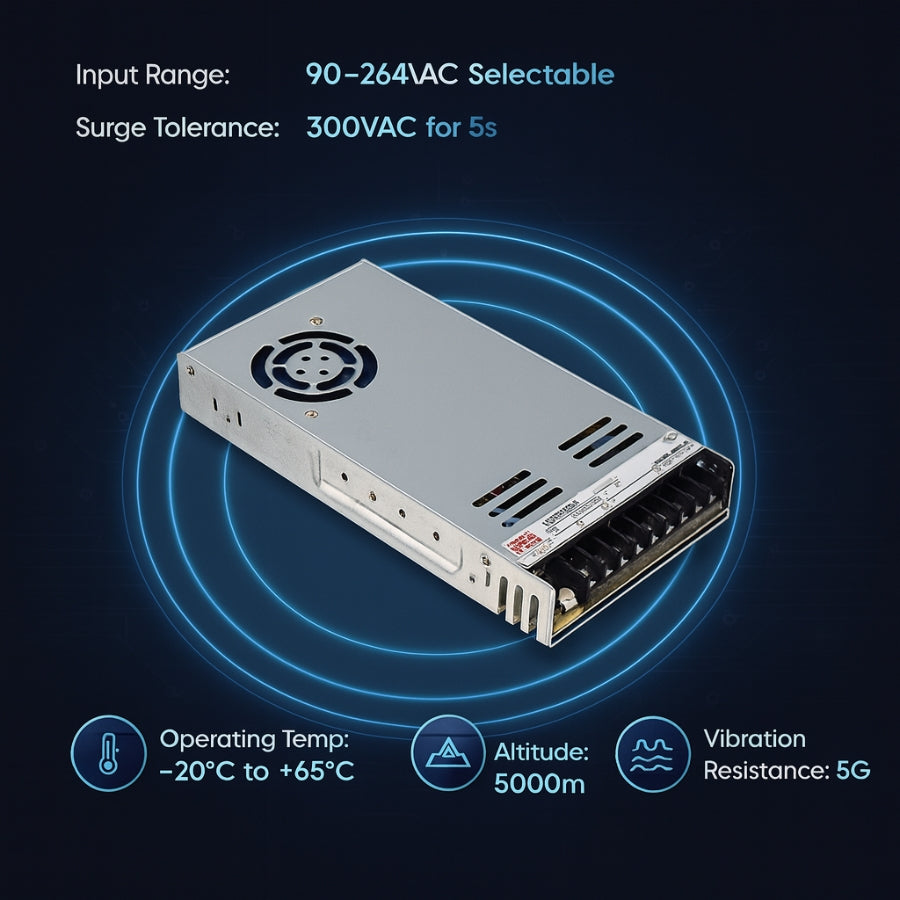

| Input Voltage | 90-132VAC / 180-264VAC (switch selectable) |
| Frequency Range | 47-63Hz |
| Output Voltages | 5V, 12V, 15V, 24V, 27V, 36V, 48V |
| Efficiency (Typical) | 86%-92% |

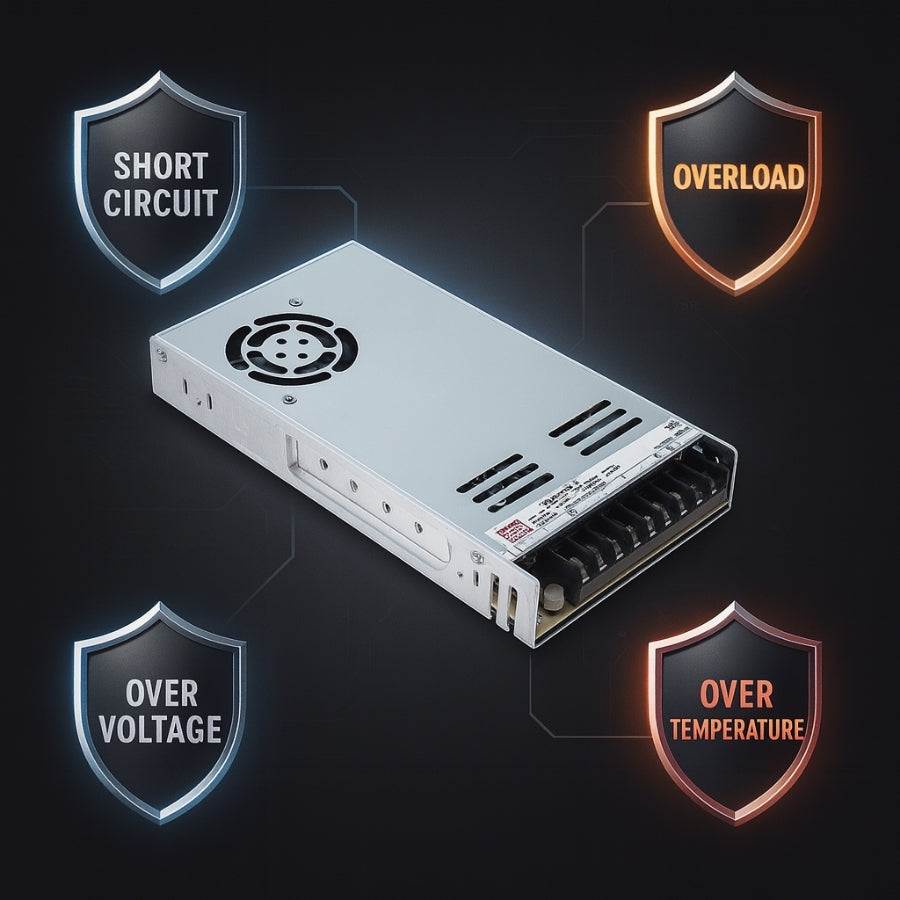

| Protections | Short Circuit, Overload, Over Voltage, Over Temperature |

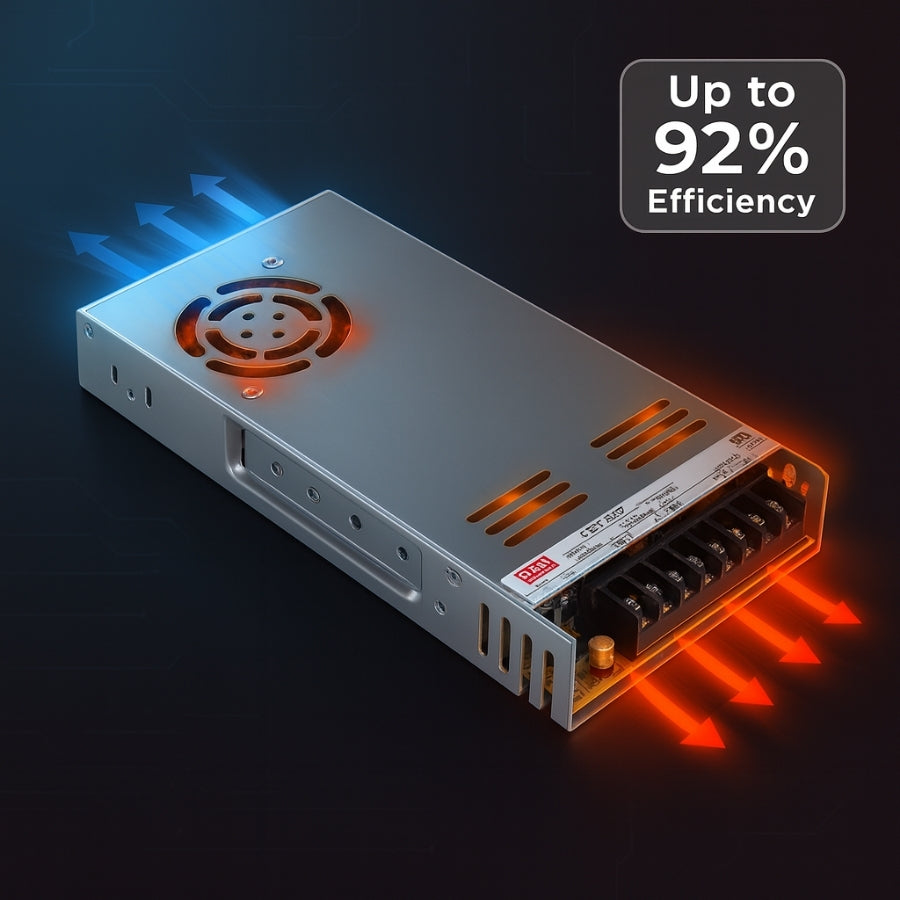

| Cooling | Forced Air with Fan ON/OFF Control |
| Operating Temperature | -20°C to +65°C |
| Operating Altitude | Up to 5000m |
| Vibration Resistance | 5G / 10-500Hz |

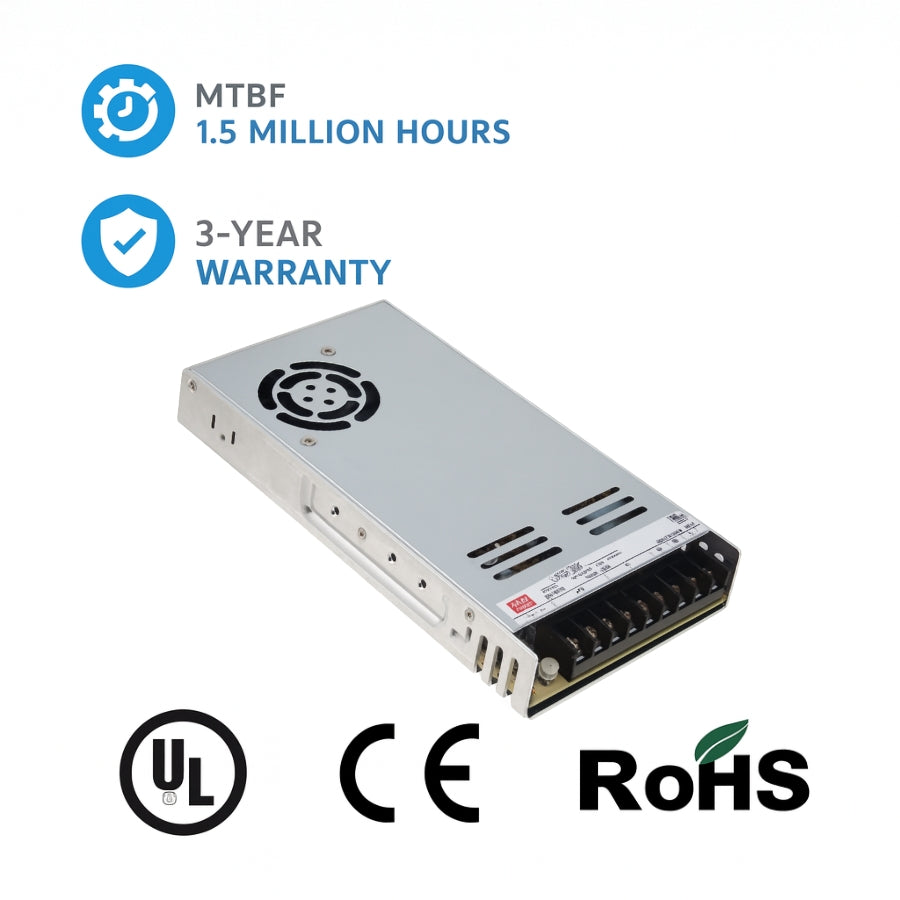

| MTBF | 1,533,400 hrs (Telcordia SR-332) |

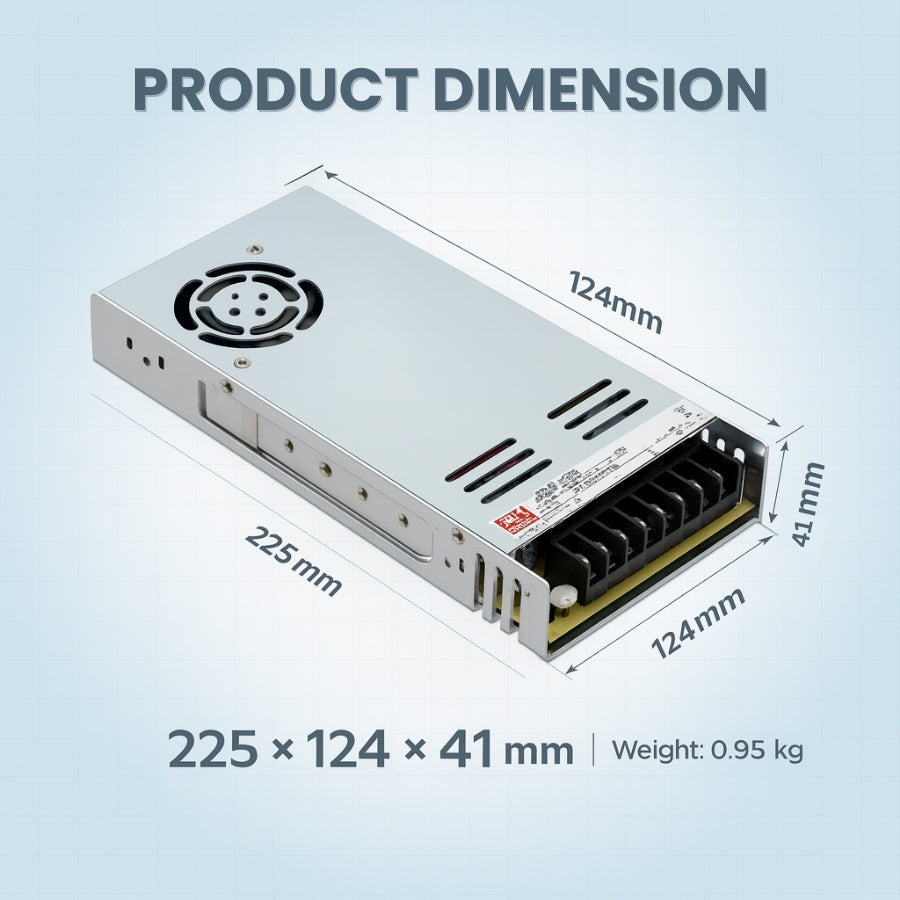

| Dimensions (L × W × H) | 225 × 124 × 41 mm |
| Weight | 0.95 kg |
| Included Accessories | TBC-09 Terminal Block Cover, 4 × MHS-012 Mounting Kits |
| Certifications | UL62368-1, IEC62368-1, EN61558-1/2-16, IS13252, RoHS |
| Warranty | 3 Years |
