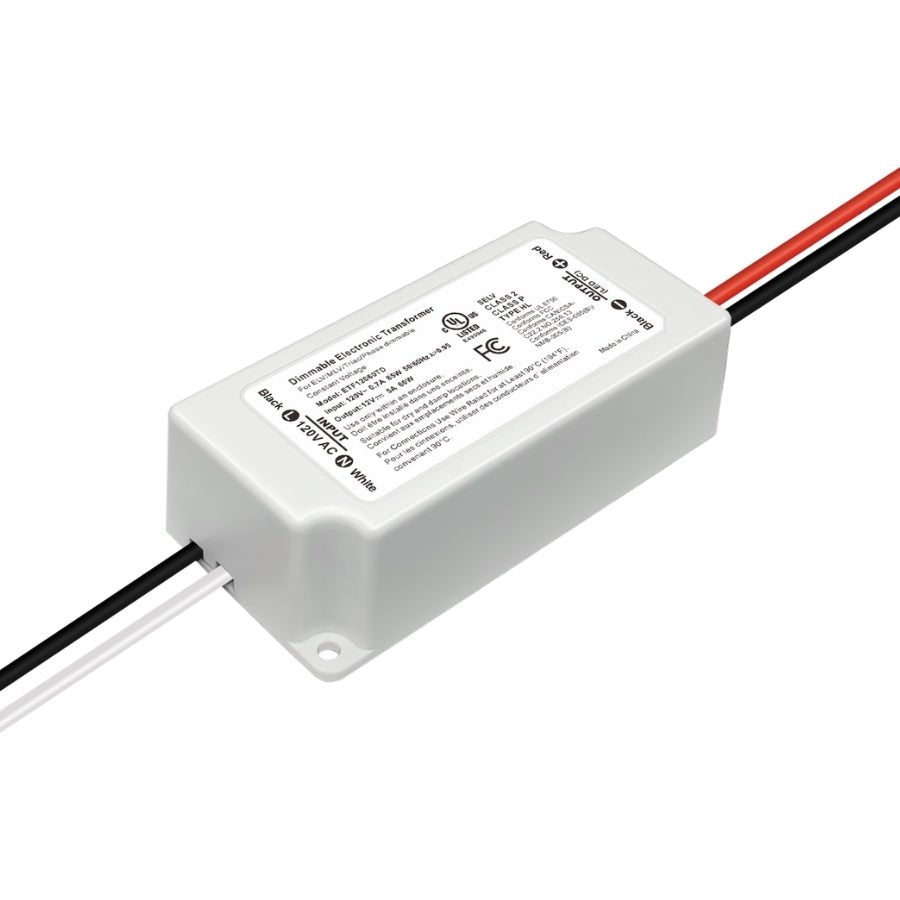

Dimmable LED Driver 12V 60W - UL Listed Power Supply, 120V AC to 12V DC Electronic Transformer for LED Strip Lights, Low Voltage Lighting
In stock
Dimmable Power Supply
Patel LED
PL-1871
Share:
Free Shipping
Ships within 1 business day
The 60W Dimmable LED Driver is a compact, high-efficiency power supply designed to convert 120V AC to a stable 12V DC output—perfect for low voltage LED lighting systems. This electronic transformer offers seamless compatibility with popular TRIAC, ELV, and MLV dimmer switches from trusted brands like Lutron and Leviton. It delivers flicker-free, 0-100% smooth dimming performance with no delay, pop-on, or pop-off effects, ensuring a reliable and aesthetic lighting experience.
Built-in safety protections—against short circuits, overloads, and overheating—enhance the durability and longevity of your lighting setup. Its minimal size (3.31" × 1.57" × 0.98") and bare wire connection design make installation easy and space-saving, even in compact enclosures. Ideal for LED strip lights, low voltage modules, and other 12V lighting applications, this LED driver is UL Listed, Class P certified, and backed by a 3-year manufacturer warranty from Patel LED. Use it confidently in both dry and damp locations for professional-grade results.
Technical Details
| Specification | Details |
|---|---|
| Brand | Patel LED |
| Manufacturer | Patel LED |
| Input Voltage | 120V AC, 0.75A, 47-63Hz |
| Output Voltage | 12V DC |
| Output Current | 5.0A |
| Rated Power | 60W |
| Dimming Range | 0-100% Smooth Dimming |

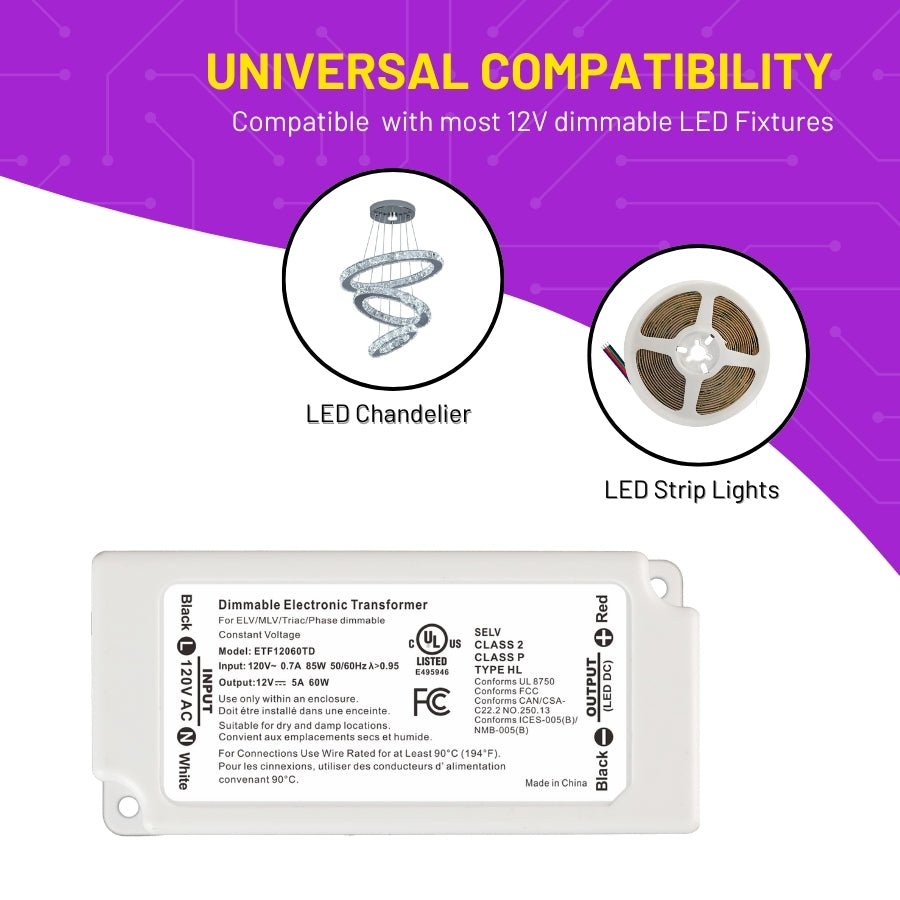

| Dimming Compatibility | TRIAC/ELV/MLV Dimmers (Lutron, Leviton, etc.) |
| Power Factor | ≥ 0.94 |
| Certifications | UL Listed, Class 2, Class P |
| Protection Features | Short Circuit, Overload, Over Temperature |
| Operating Environment | Suitable for Damp and Dry Locations |

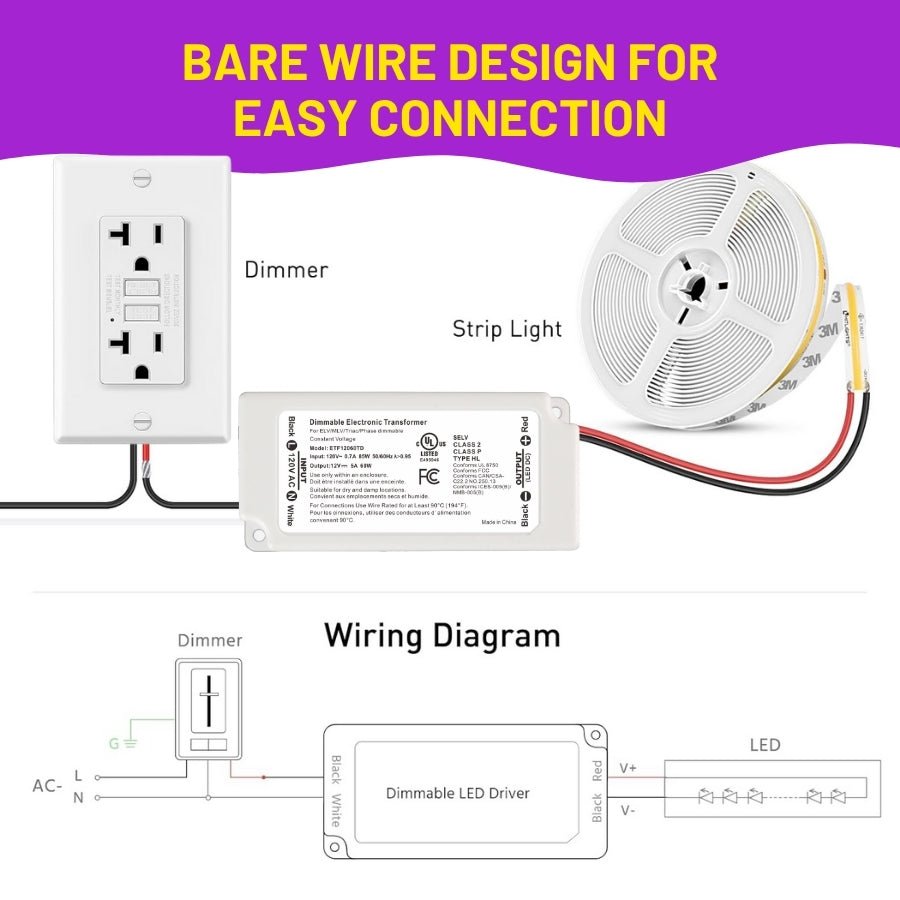

| Installation Type | Bare Wire Connection |

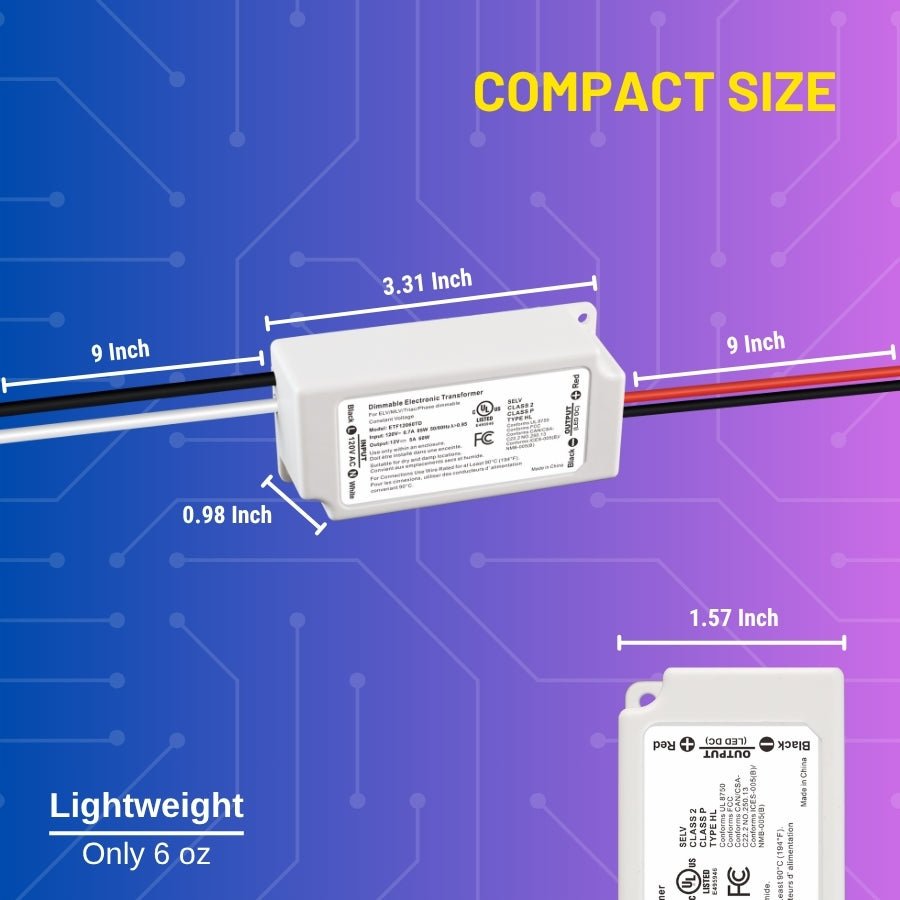

| Dimensions (L×W×H) | 3.31" × 1.57" × 0.98" (84mm × 40mm × 25mm) |
| Warranty | 3 Years |
| Application | LED Strip Lights, Modules, Low Voltage Lighting Projects |
