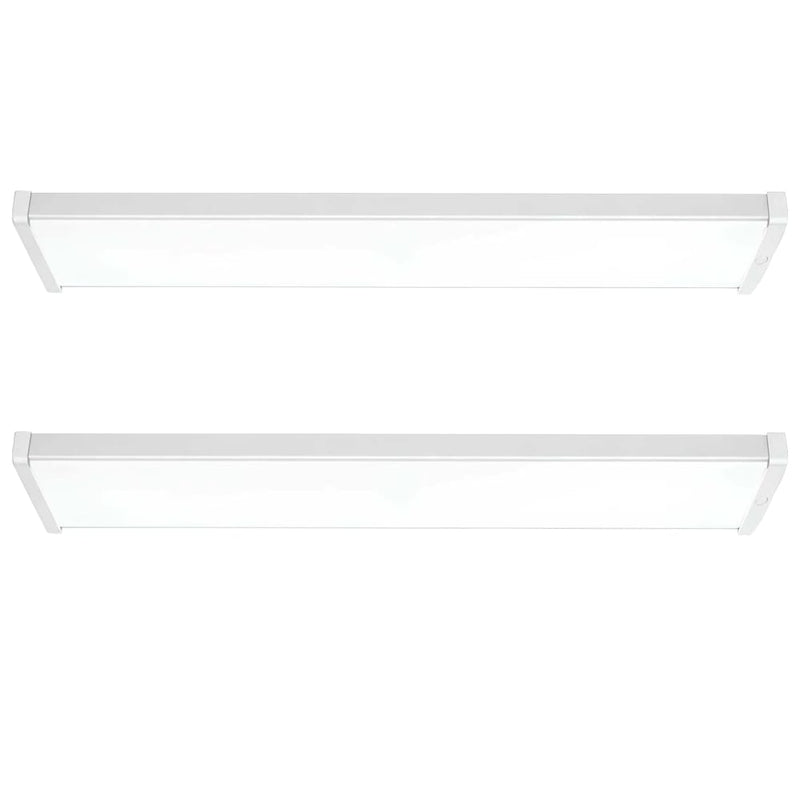

4FT LED Fixture – 20W–75W Adjustable Wattage, 3000K–6500K CCT, 100–277V
In stock
PL-2030
Upgrade your lighting projects with this 4FT LED Fixture, featuring adjustable wattage and color temperature for versatile lighting applications. With selectable wattage options ranging from 20W to 75W and adjustable color temperatures from 3000K to 6500K, this fixture provides flexibility to meet different lighting requirements.
Designed for efficient illumination, this LED fixture delivers up to 9,750 lumens with a luminous efficacy of 130 lm/W. Its 120° beam angle provides broad light distribution, while a CRI greater than 80 supports good color rendering. The fixture operates on 100–277V input voltage and has a rated lifetime of 50,000 hours.
With a power factor greater than 0.90, total harmonic distortion of 20% or less, and an IP20 rating, this 4FT LED fixture is suitable for lighting projects requiring adjustable output and reliable performance.
Technical Specifications
| Specification | Details |
|---|---|
| Model | ZS-WL1275R-3065 |

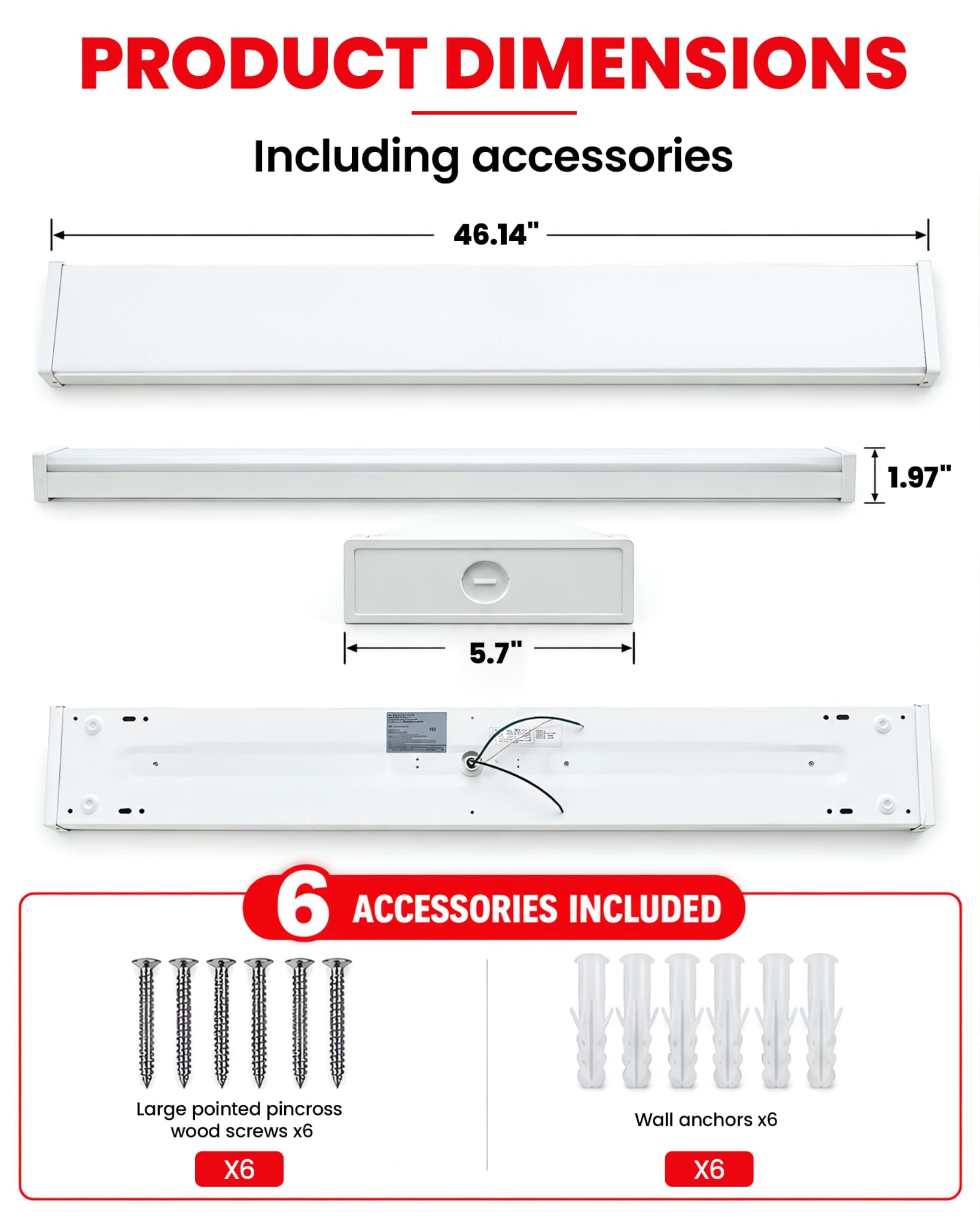

| Size | 4FT |
| Wattage | 20W / 35W / 50W / 65W / 75W (Adjustable) |
| Maximum Wattage | 75W |
| CCT | 3000K / 3500K / 4000K / 5000K / 6500K (Adjustable) |
| Efficiency | 130 lm/W |
| Lumens | 2600 / 4550 / 6500 / 8450 / 9750 lm |
| Beam Angle | 120° |
| Input Voltage | 100–277V |
| Frequency Range | 50/60Hz |
| CRI | >80 |
| PF | >0.90 |
| THD | ≤20% |
| Rating | IP20 |
| Lifetime | 50,000 hours |
| Operating Temperature | -4°F to 104°F (-20°C to 40°C) |
FAQs
Q1: What is the size of this LED fixture?
The fixture is 4FT in size.
Q2: Is the wattage adjustable?
Yes, the fixture offers selectable wattage options of 20W, 35W, 50W, 65W, and 75W.
Q3: What color temperatures are available?
The adjustable CCT options are 3000K, 3500K, 4000K, 5000K, and 6500K.
Q4: How many lumens does the fixture produce?
The available lumen outputs are 2600, 4550, 6500, 8450, and 9750 lumens.
Q5: What input voltage does it support?
The fixture operates on 100–277V input voltage at 50/60Hz.
Q6: What is the beam angle?
The fixture has a 120° beam angle.
Q7: What is the rated lifetime?
The fixture has a rated lifetime of 50,000 hours.
Q8: What is the operating temperature range?
The specified operating temperature range is -4°F to 104°F (-20°C to 40°C).
