20W Mini LED Wall Pack Light – 2850 Lumens, 5700K Daylight, Dimmable, UL & DLC Listed, IP65 Waterproof, 5-Year Warranty
In stock
WALL PACK
Patel LED
PL-0961
Share:
Free Shipping
Ships within 1 business day
Volume Discounts

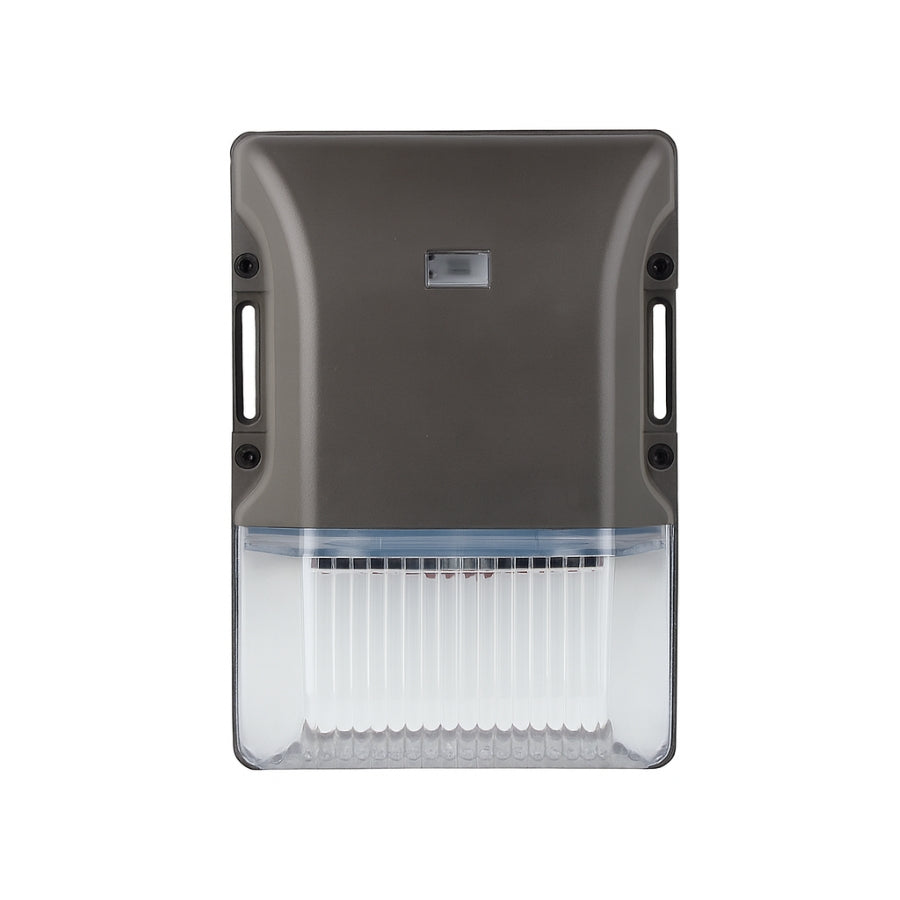

Brighten your outdoor spaces with the compact and efficient Patel LED 20W Mini Wall Pack.

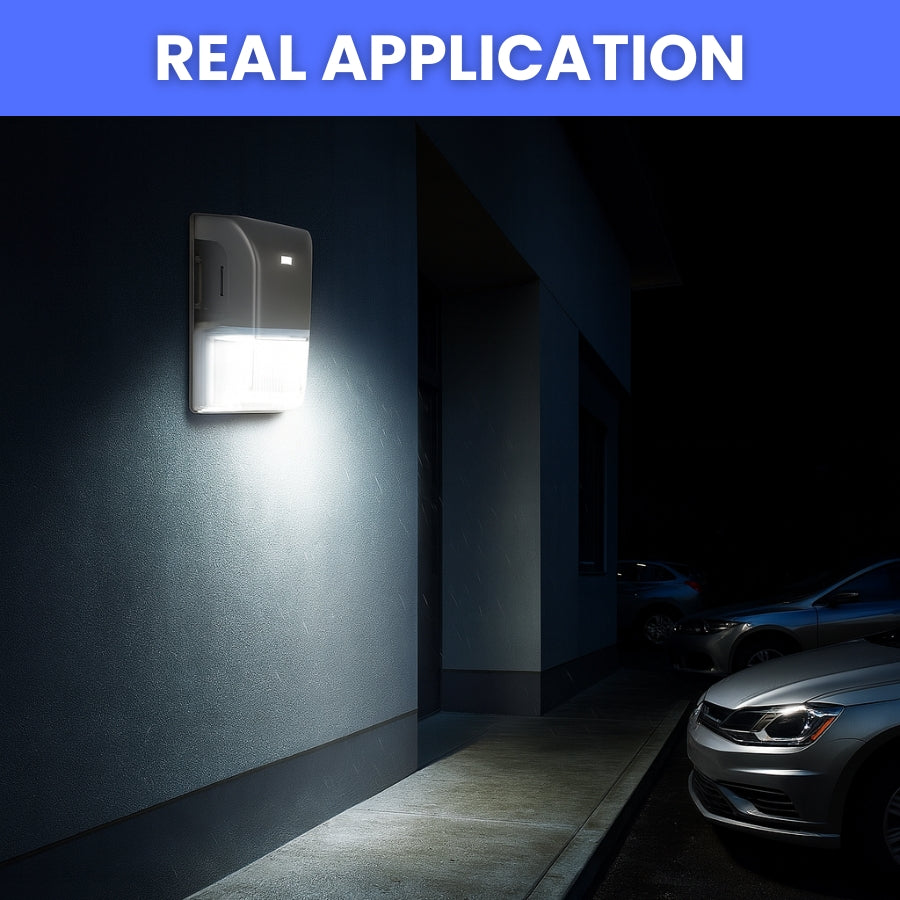

Delivering 2850 lumens at 5700K daylight white, this energy-saving fixture is ideal for security and accent lighting in commercial, industrial, and residential applications.
Designed with a durable aluminum housing in brown finish and a clear lens cover, this wall pack provides crisp, uniform illumination while ensuring long-lasting reliability. The IP65 waterproof rating makes it perfect for outdoor use, even in harsh weather.
Certified by UL & DLC, it offers high efficiency (135 lm/W), energy savings, and eligibility for rebate programs. With a 50,000-hour LED lifespan and a 5-year warranty, the Patel LED Mini Wall Pack is a low-maintenance, high-performance solution for your lighting needs.
Key Features:
-
Compact & Powerful – 2850 lumens at just 20W.
-
Daylight Brightness – Crisp 5700K for security & visibility.
-
Energy Efficient – High efficacy of 135 lm/W reduces energy costs.
-
Durable Build – Rugged aluminum housing with brown finish.
-
Clear Lens Cover – Provides sharp, uniform light output.
-

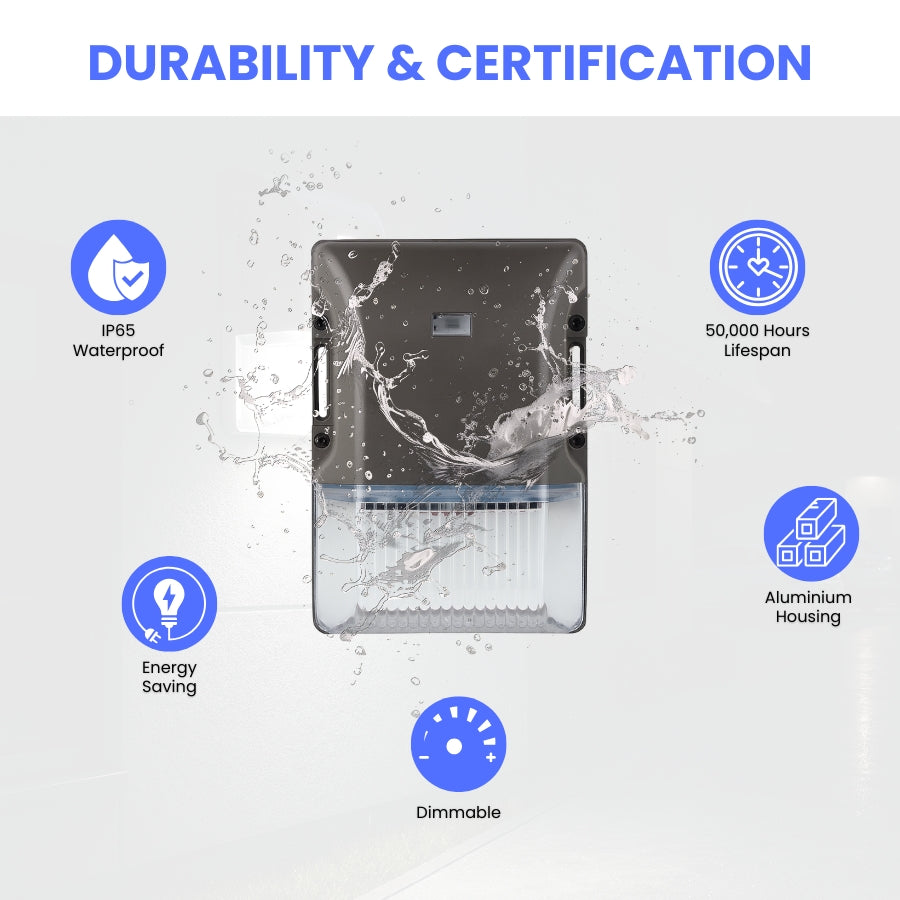

Waterproof Protection – IP65 rated for outdoor applications.
-
Dimmable – 0–10V dimming for brightness control.
-
Certified Quality – UL & DLC listed for rebates and safety.
-
Long Lifespan – 50,000 hours of maintenance-free lighting.
-
5-Year Warranty – Backed by Patel LED reliability.

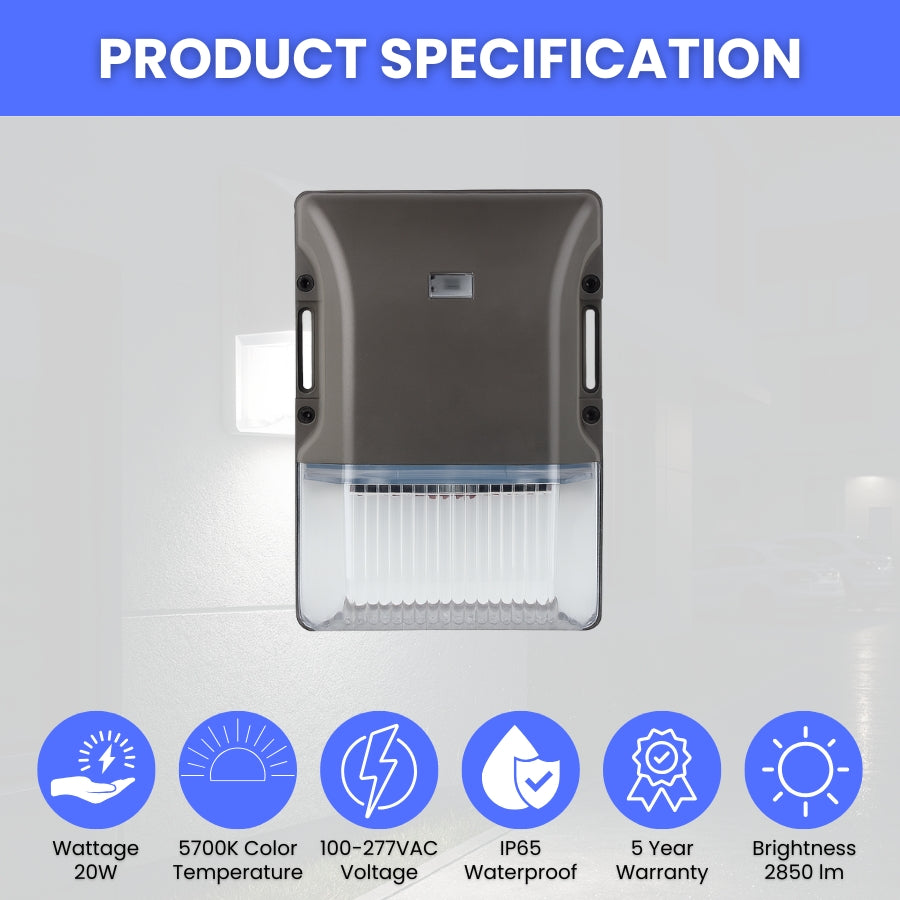

Technical Specifications:
| Specification | Details |
|---|---|
| Brand | Patel LED |
| Model Name | 20W Mini Wall Pack |
| Wattage | 20W |
| Lumen Output | 2850 lm |
| Color Temperature | 5700K (Daylight White) |
| Efficacy | 135 lm/W |
| CRI | 80+ |
| Beam Angle | 100° |
| Input Voltage | 100–277V AC, 50/60Hz |
| Power Factor | ≥0.9 |
| Dimmable | Yes (0–10V) |
| Operating Temp. | -40°C to 50°C (-40°F to 122°F) |
| Housing Material | Aluminum |
| Housing Color | Brown |
| Lens Type | Clear |
| Waterproof Rating | IP65 (Outdoor Rated) |
| Certifications | UL, DLC |
| LED Lifespan | 50,000 Hours |
| Warranty | 5 Years |
| Mounting Type | Wall Mount |
| Indoor/Outdoor Use | Outdoor |
