16.4ft x 9.45in Giant LED Sheet Roll, 24V 3000K Warm White Flexible Cuttable Dimmable LED Backlight Panel, Paper-Thin Plug-and-Play LED Board for Countertops, Stained Glass & Accent Walls, UL-Listed, IP20
In stock
Share:
Free Shipping
Ships within 1 business day
Key Features
-

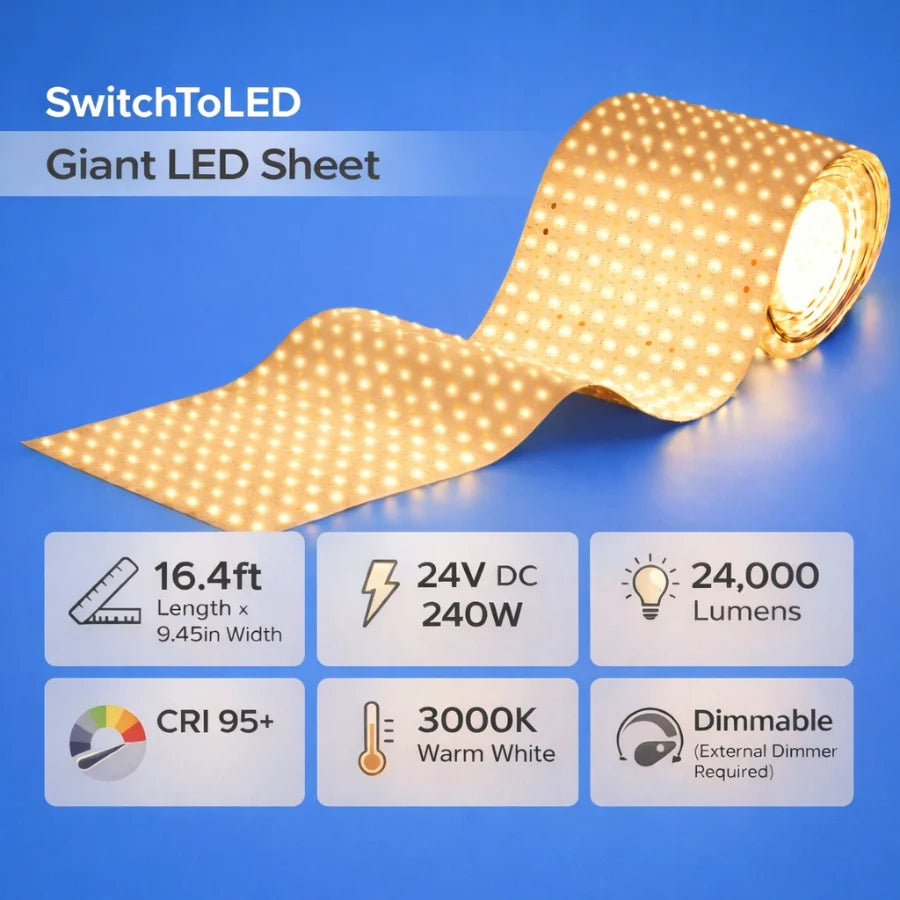

Extra-Large LED Sheet Coverage – One 16.4ft roll covers 12.9 sq. ft., equivalent to 10 regular LED sheets
-
High Brightness & Natural Color – 24,000 lumens output with CRI 95+ for warm, eye-comfortable lighting
-
3000K Warm White Light – Soft, inviting glow ideal for decorative and ambient backlighting
-

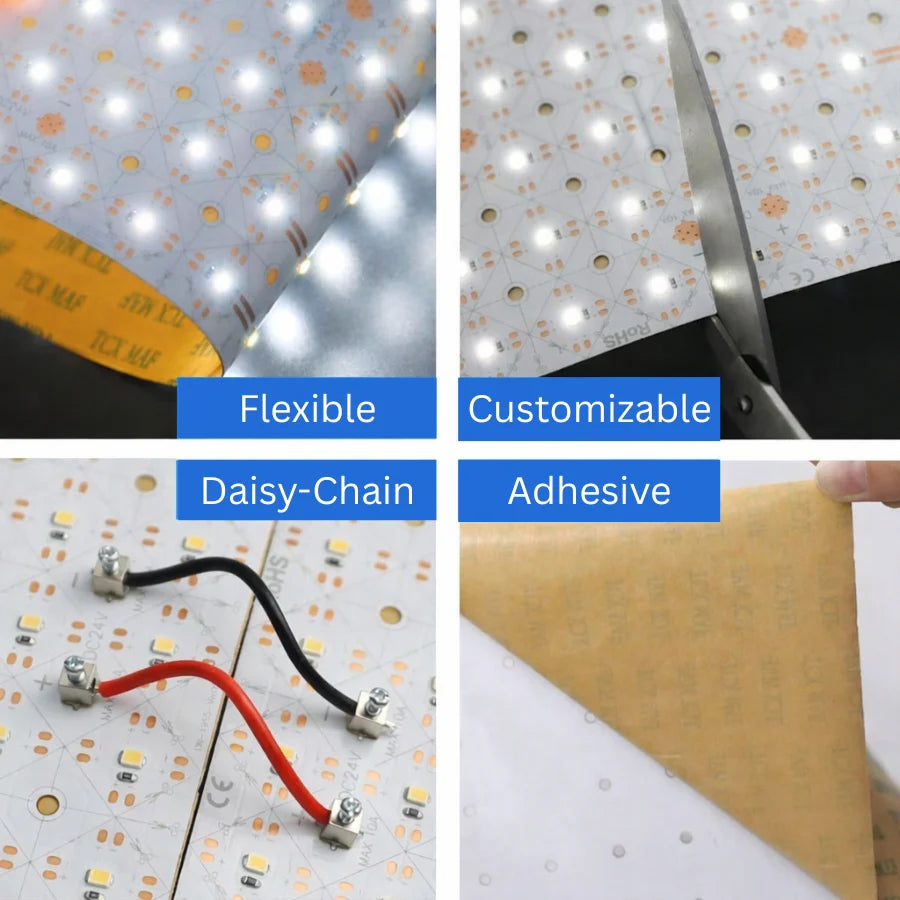

Ultra-Slim & Flexible Design – Paper-thin PCB bends easily for curved and corner installations
-

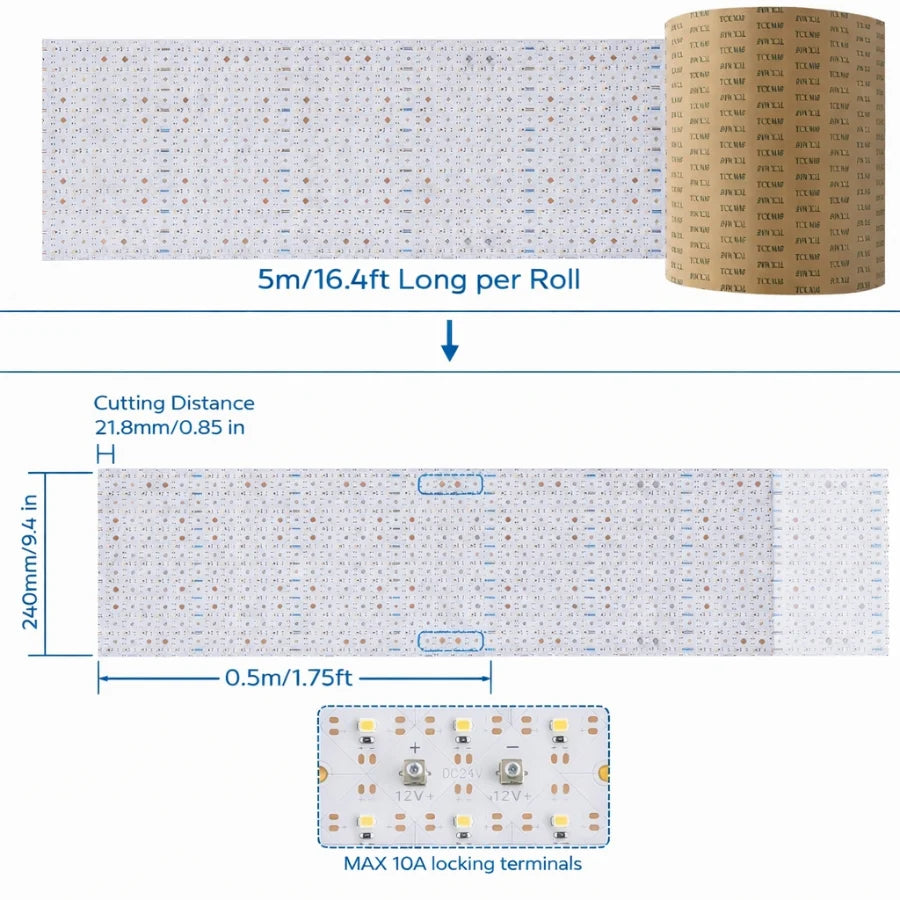

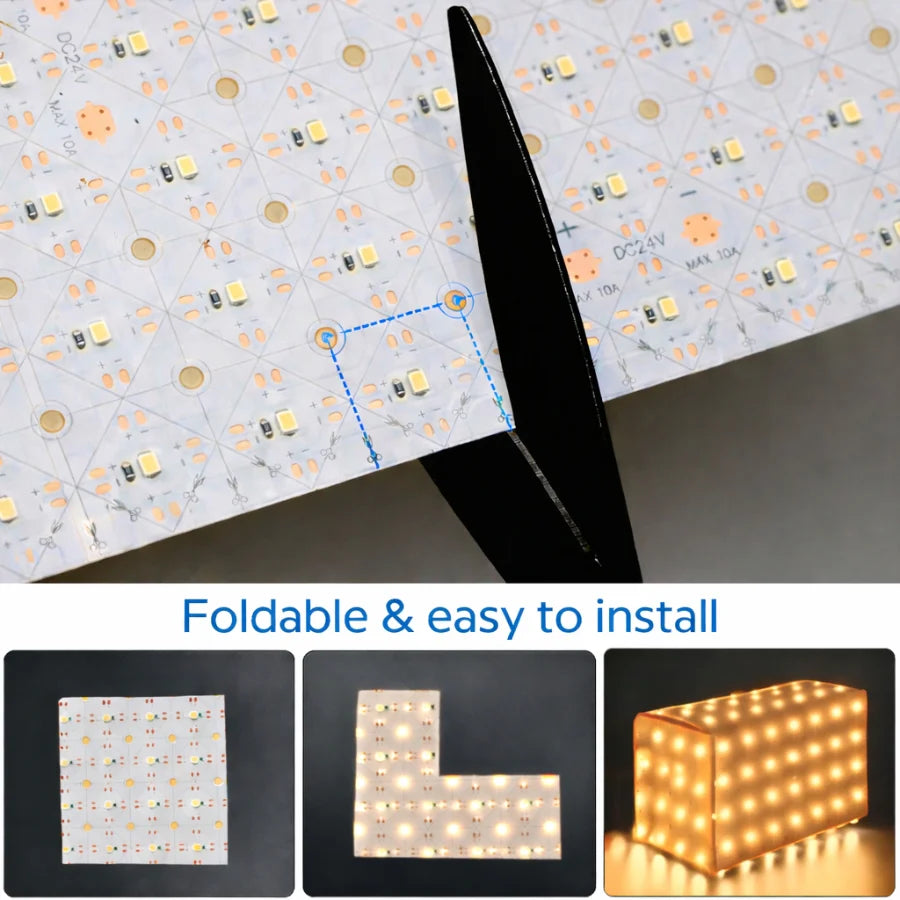

Cuttable for Custom Fit – Trim every 20.8mm (0.82in) along marked cut lines
-

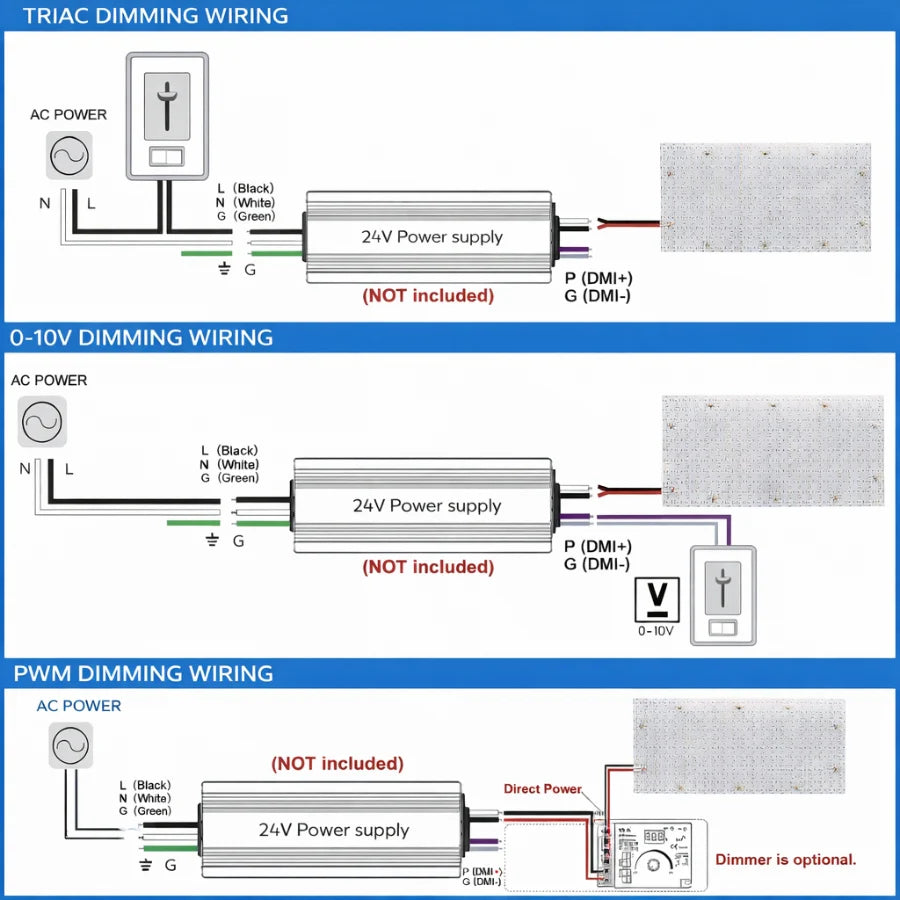

Dimmable Performance – Compatible with external 24V dimmers (not included)
-
Easy Daisy-Chain Connection – Built-in screw terminals allow fast power and linking
-
UL-Listed Safety – Designed for professional-grade installations
- Indoor Use Only (IP20) – Ideal for dry locations such as countertops and feature walls
Technical Details
| Feature | Details |
|---|---|
| Brand | Patel LED |
| Product Type | Giant LED Backlight Sheet Roll |
| Color Temperature | 3000K (Warm White) |
| Light Color | White |
| Brightness | 24,000 Lumens |
| CRI | 95+ |
| Voltage | 24V DC |
| Wattage | 240W per sheet |
| LED Type | SMD 2835 |
| Number of LEDs | 2,640 |
| Dimensions | 16.4 ft x 9.45 in (197 in length) |
| Coverage Area | 12.9 sq. ft. |
| Material | Flexible PCB |
| Cuttable Interval | Every 20.8mm (0.82 in) |
| Dimmable | Yes (External dimmer required, not included) |
| Power Supply | Not Included (Requires 24V ≥ 300W) |
| Ingress Protection | IP20 (Indoor, Dry Locations Only) |

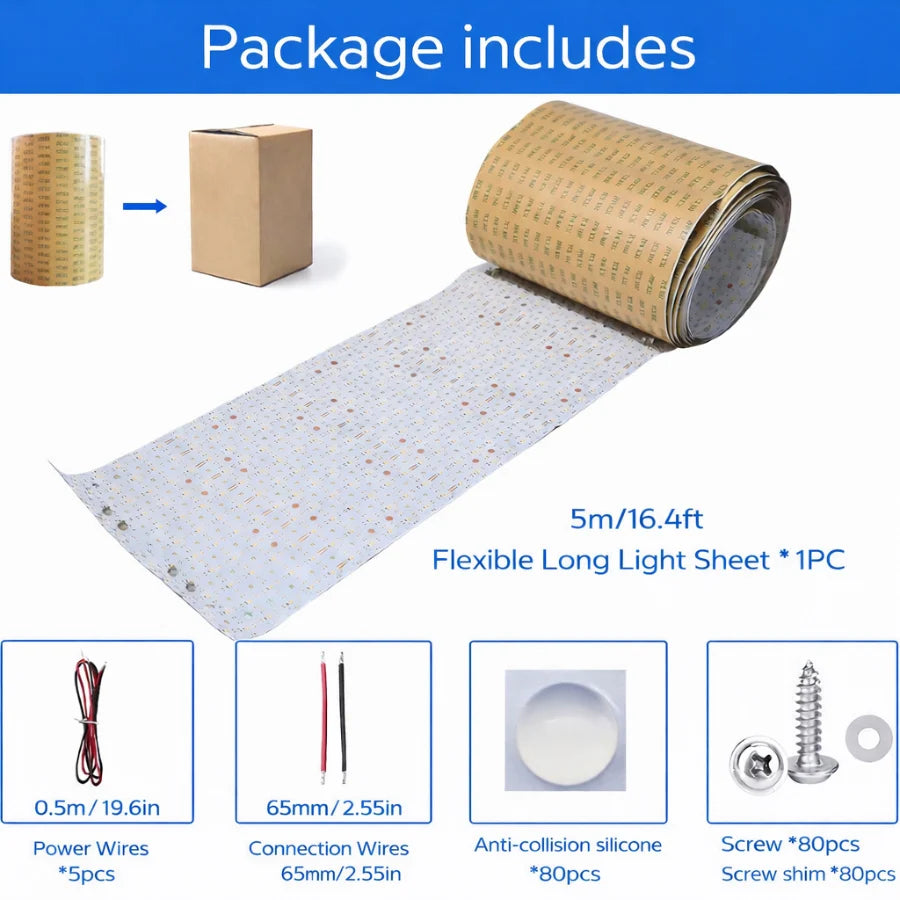

| Included Accessories | Power cables, interconnect cables, silicone spacers, screws, screw shims |
| Mounting Type | Surface / Backlighting |

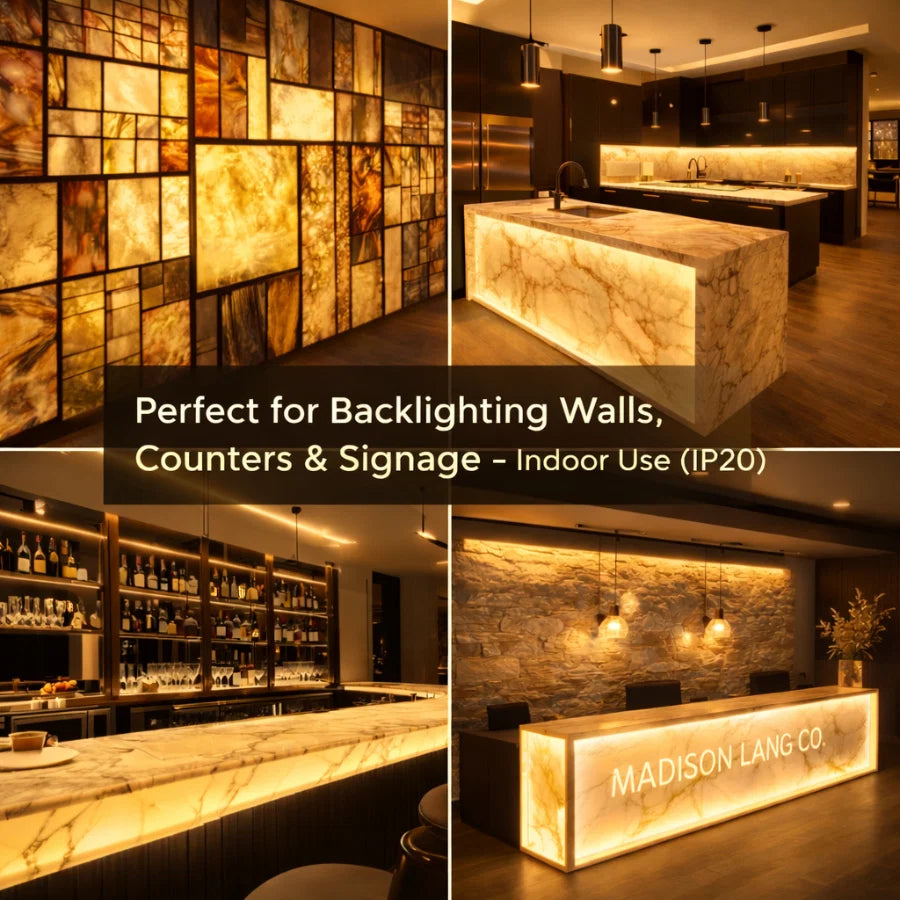

| Application | Countertops, Accent Walls, Stained Glass, Commercial Displays |
| Weight | 2.9 lbs |
| Certifications | UL-Listed |
| Seasons | All Seasons |
