Digital LED Strip Controller SPI02 - 2-in-1 Single Color & CCT, 12-24V DC, 2.4GHz RF Compatible, 2048 Pixels, 4 SPI Outputs, 29 Single Color & 54 CCT Lighting Effects, Memory & Sync Function, for Indoor & Outdoor LED Projects
In stock
CONTROLLER & REMOTE
Patel LED
PL-1821
Share:
Free Shipping
Ships within 1 business day

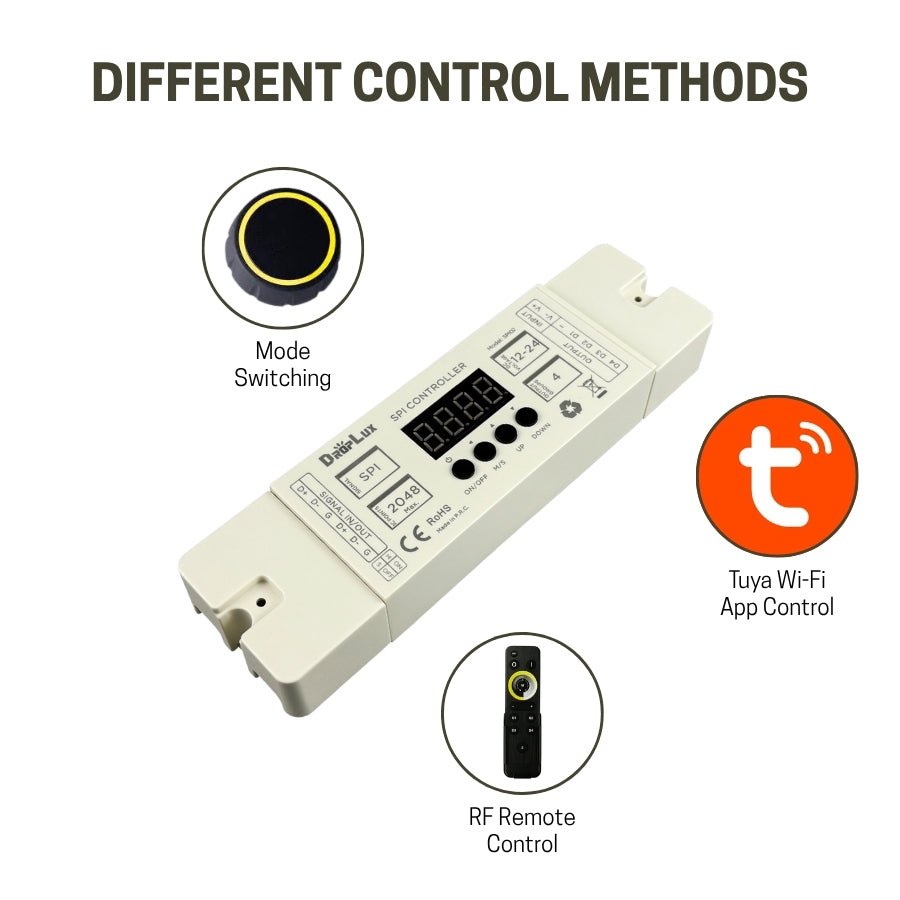

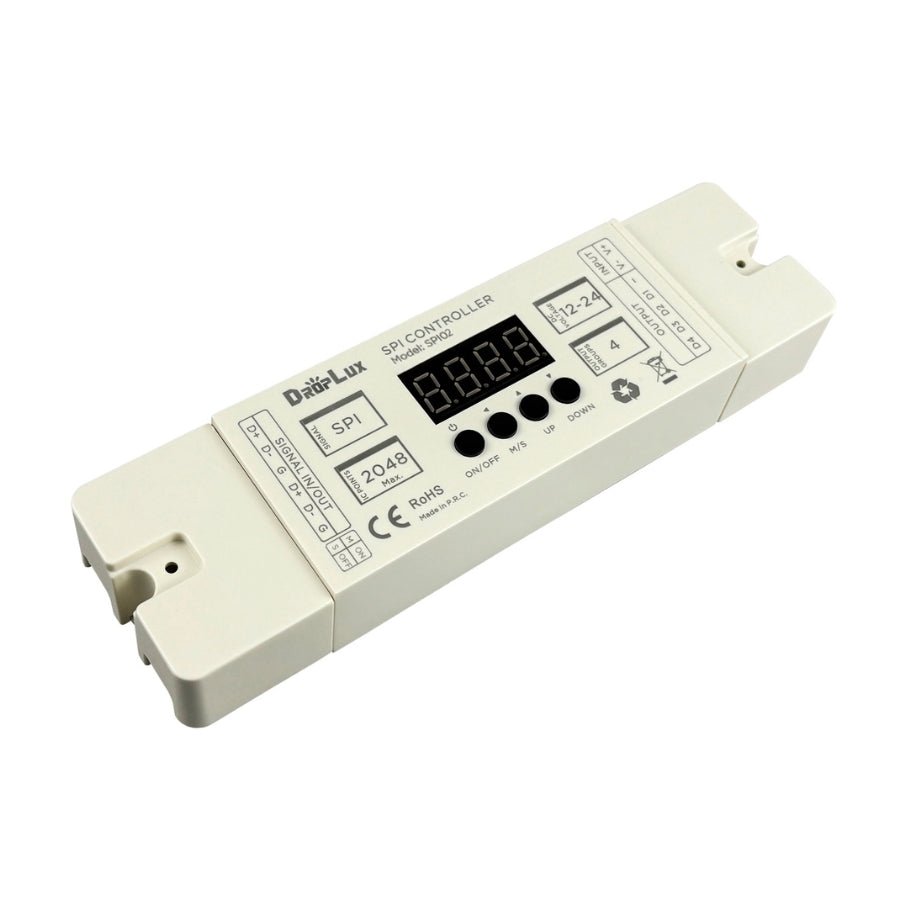

The SPI02 LED Strip Controller by Patel LED is a low-voltage SPI digital controller designed to control both single color and CCT (correlated color temperature) digital LED strips. Powered by DC12-24V, it supports up to 2048 pixels through 4 SPI outputs, offering 29 single color and 54 CCT dynamic lighting effects including running water, trailing, raindrop, scanning, and more. The unit can be operated using onboard buttons or paired with 2.4GHz RF remote controls (HX-RFBK-DIMCCT-2.4G / HX-RFBT03B-2.4G).

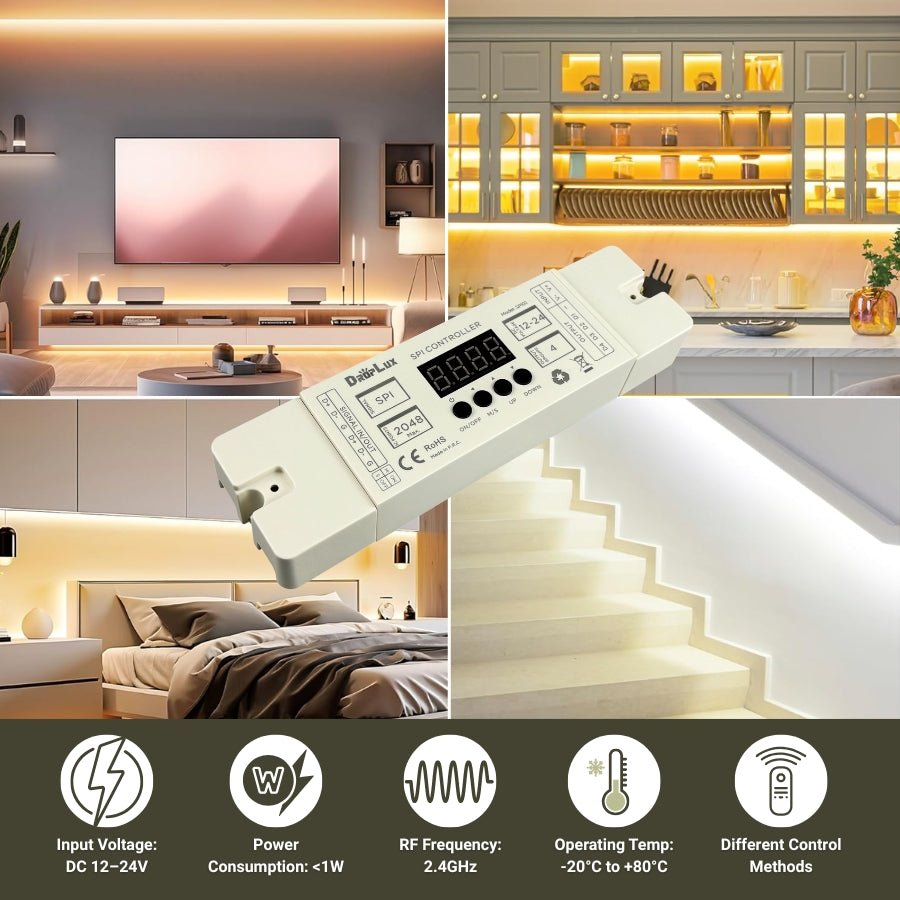

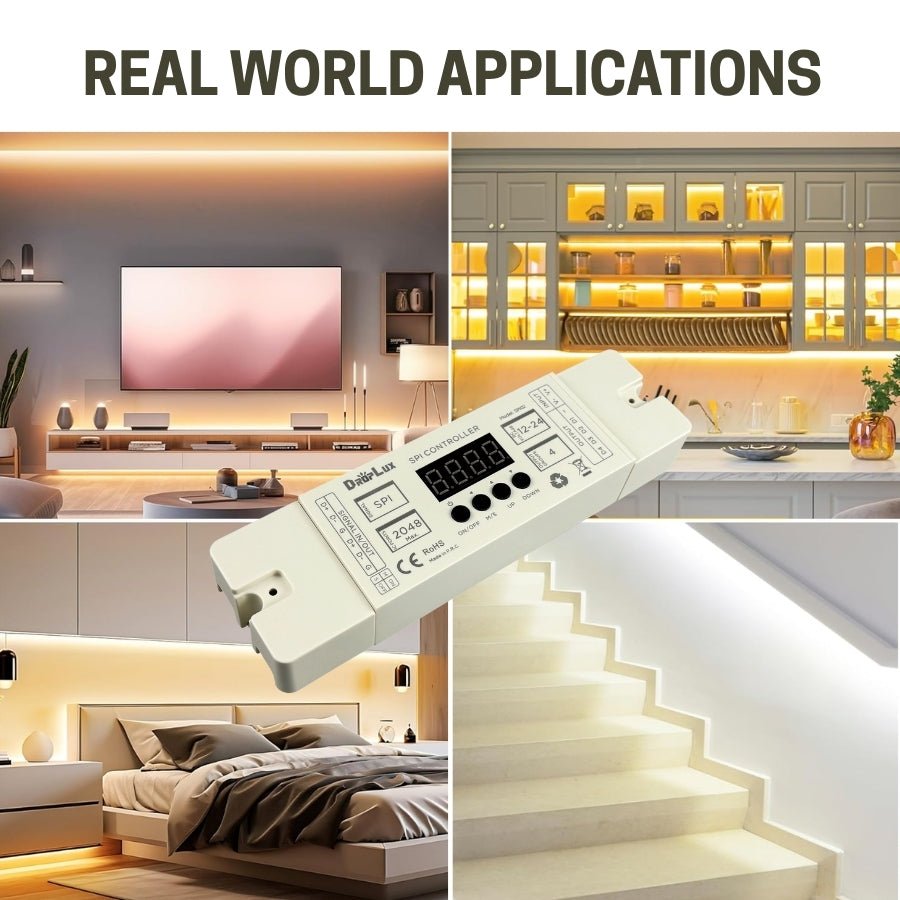

With a built-in digital display, memory storage, and support for up to 32 synchronized controllers, the SPI02 is ideal for architectural lighting, entertainment venues, stage effects, and urban installations. Easily configure IC count, brightness, speed, and custom scenes with intuitive button functions. Compatible with UCS1903, WS2811, WS2812, SM16703 ICs.
Backed by a 3-year warranty, this controller is built for professional-grade lighting control with reliability and ease of use.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Patel LED |
| Model | SPI02 |
| Product Type | SPI LED Strip Controller (Single Color & CCT) |
| Working Voltage | DC 12-24V |
| Power Consumption | <1W (static) |
| Signal Output | 4 groups SPI (3-wire) |
| Max Control Points | 2048 pixels |
| Compatible ICs | UCS1903, WS2811, WS2812, SM16703 |
| Gray Level | 256 |
| Speed Levels | 99 |
| Modes Available | 29 (Single Color), 54 (CCT) |
| Custom Scene Mode | Up to 20 user-defined scenes with individual speed/brightness settings |
| Remote Control Compatibility | HX-RFBK-DIMCCT-2.4G (4 zones), HX-RFBT03B-2.4G (1 zone) |
| RF Frequency | 2.4GHz |
| RF Control Distance | ≤ 20m |
| Memory Function | Yes (power-off memory) |
| Synchronization | Yes, supports up to 32 units via shielded wire sync |

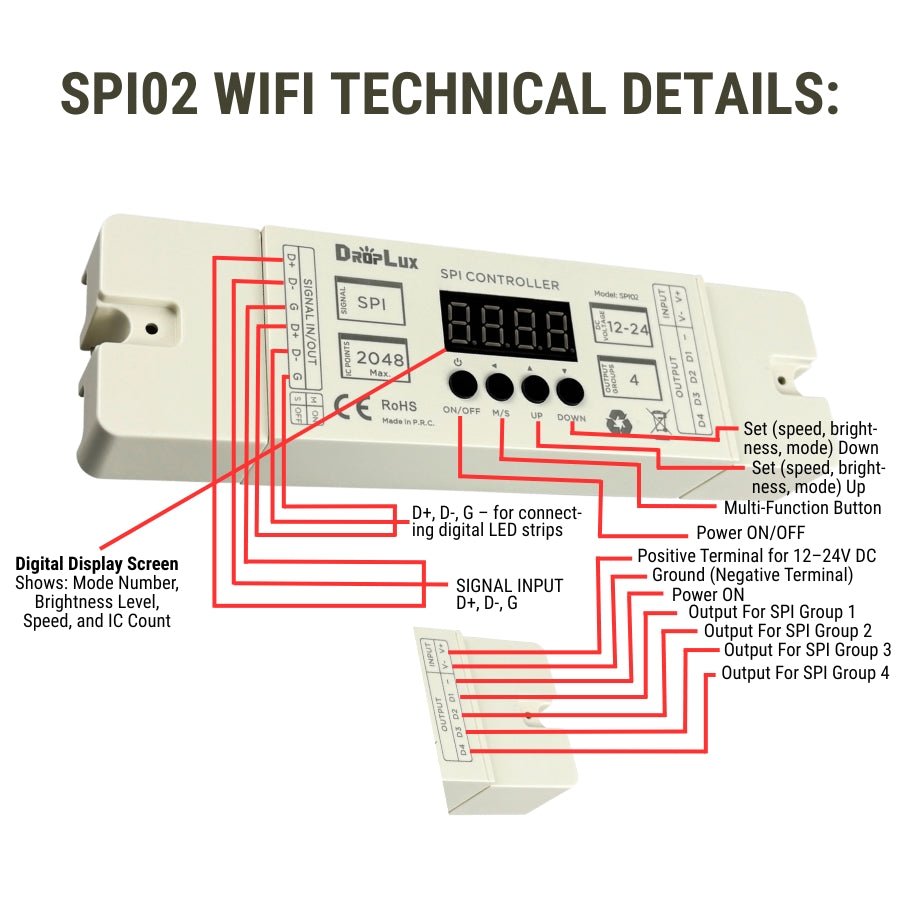

| Display | Digital tube with IC point, mode, speed, brightness indicators |
| Controller Buttons | ON/OFF, M/S (Mode/Speed/Brightness), UP, DOWN |
| Mode Types | Static, flashing, fade, horse race, trailing, water, stacking, etc. |
| Output Modes | Single Color / CCT (selectable via settings) |
| Working Temperature | -20°C to +80°C |

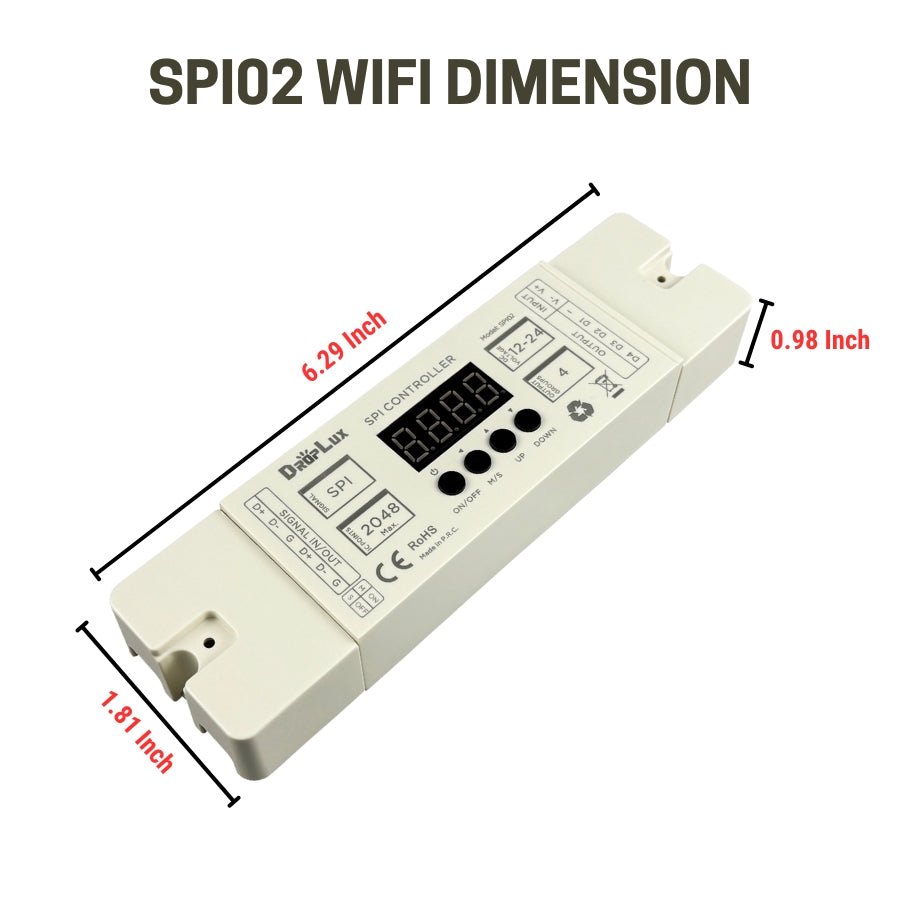

| Dimensions | 160mm (L) × 46mm (W) × 25mm (H) |
| Net Weight | 100g |
| Gross Weight | 130g |
| Packing Size | 170mm (L) × 50mm (W) × 29mm (H) |
| Warranty | 3 years (excludes man-made damage, overload, short circuit, or force majeure) |
